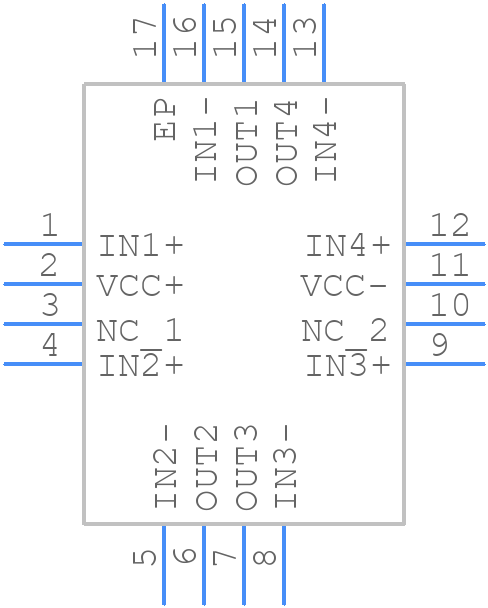

TSU104IQ4T - STMicroelectronics

TSU104IQ4T Details

• Manufacturer Part Number:

  TSU104IQ4T

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  3 X 3 MM, ROHS COMPLIANT, QFN-16

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  8

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.00003 µA

• Bias Current-Max (IIB) @25C:

  0.000002 µA

• Common-mode Reject Ratio-Min:

  55 dB

• Common-mode Reject Ratio-Nom:

  74 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  3400 µV

• JESD-30 Code:

  S-XQCC-N16

• Length:

  3 mm

• Low-Bias:

  YES

• Low-Offset:

  NO

• Micropower:

  YES

• Number of Functions:

  16

• Number of Terminals:

  4

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  1 mm

• Slew Rate-Nom:

  3000 V/us

• Subcategory:

  Operational Amplifier

• Supply Current-Max:

  3.2 mA

• Supply Voltage Limit-Max:

  6 V

• Supply Voltage-Nom (Vsup):

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Unity Gain BW-Nom:

  8

• Voltage Gain-Min:

  56234.13

• Wideband:

  NO

• Width:

  3 mm
