TSU6111ARSVR - Texas Instruments

Description: Dual SP2T Micro-USB Switch with integrated impedance and charger detection

Download TSU6111ARSVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

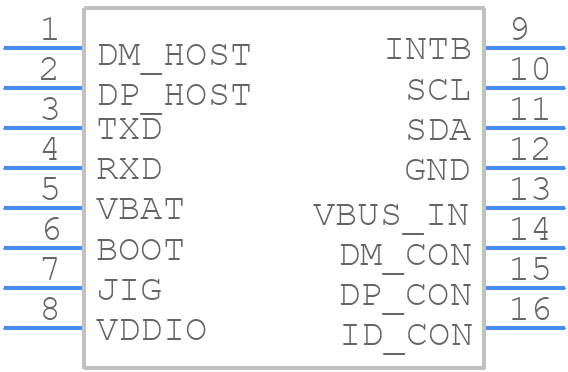

TSU6111ARSVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSU6111ARSVR - Texas Instruments PCB footprint - Other - Other - RSV0016A
click to zoom
3D Models
TSU6111ARSVR - Texas Instruments - 3D model - Other - RSV0016A
click to zoom

TSU6111ARSVR Details

  • Manufacturer Part Number:

    TSU6111ARSVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UQFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 1:2 SPDT

  • Analog IC - Other Type:

    SPDT

  • Bandwidth-Nom:

    920 MHz

  • JESD-30 Code:

    R-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    26 dB

  • On-state Resistance Match-Nom:

    2 Ω

  • On-state Resistance-Max (Ron):

    15000 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.07X.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Supply Current-Max (Isup):

    0.075 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    95000 ns

  • Switch-on Time-Max:

    3500 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

TSU6111ARSVR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TSU6111ARSVR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, use short traces and avoid crossing digital and analog signals.
  • The TSU6111ARSVR requires a single 3.3V power supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it's recommended to power up the device after the analog power supply is stable.
  • The recommended input impedance for the TSU6111ARSVR is 1 kΩ or higher. A higher input impedance can lead to better noise rejection and improved common-mode rejection ratio (CMRR). However, it may also increase the input capacitance and affect the device's bandwidth.
  • To optimize the TSU6111ARSVR's performance in high-frequency applications, use a low-pass filter at the input, minimize parasitic capacitance, and ensure a stable power supply. Additionally, consider using a higher-order filter or a separate anti-aliasing filter to reduce noise and aliasing.
  • The TSU6111ARSVR has a maximum junction temperature of 150°C. Ensure good thermal conduction by using a heat sink or a thermally conductive PCB material. Keep the device away from heat sources, and consider using thermal interface materials to reduce thermal resistance.
