TSV854AIPT - STMicroelectronics

Description: Low-power (180uA), general-purpose 5V Bipolar Op Amps, GBP=1.3MHz, small offset, quad

Download TSV854AIPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

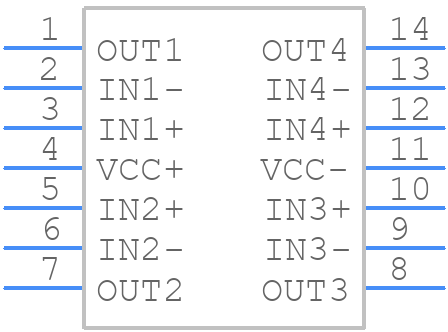

TSV854AIPT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSV854AIPT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - tssop-14
click to zoom
3D Models
TSV854AIPT - STMicroelectronics - 3D model - Small Outline Packages - tssop-14
click to zoom

TSV854AIPT Details

  • Manufacturer Part Number:

    TSV854AIPT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.11 µA

  • Bias Current-Max (IIB) @25C:

    0.06 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    75 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Number of Functions:

    14

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Nom:

    0.6 V/us

  • Supply Current-Max:

    0.72 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    1300

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    4.4 mm

TSV854AIPT Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
  • To ensure stability, it's essential to follow the recommended output capacitor selection and layout guidelines. A minimum output capacitance of 10uF is recommended, with an ESR of less than 1 ohm. Additionally, the output capacitor should be placed close to the output pin, and the feedback network should be designed to minimize noise and oscillations.
  • While the recommended maximum input voltage is 5.5V, the device can withstand up to 6.5V for short periods (less than 500ms) without damage. However, it's essential to ensure that the input voltage does not exceed 5.5V for prolonged periods to prevent long-term reliability issues.
  • The power dissipation can be calculated using the formula Pd = (Vin - Vout) x Iout. The junction temperature can be estimated using the thermal resistance (Rthja) and the power dissipation, according to the formula Tj = Ta + (Rthja x Pd), where Ta is the ambient temperature.
  • Yes, to minimize EMI/EMC issues, it's recommended to follow good PCB layout practices, such as separating the input and output stages, using a solid ground plane, and minimizing loop areas. Additionally, the device's switching frequency can be synchronized with other switching regulators in the system to reduce EMI emissions.
