The recommended mating cycle for the TSW-112-14-G-D is 500 cycles, but it can be increased to 1000 cycles with proper mating and unmating techniques.
Yes, the TSW-112-14-G-D is designed to withstand high-vibration environments, but it's recommended to perform additional testing to ensure the connector meets the specific vibration requirements of your application.
Samtec recommends using a soft-bristled brush and a gentle cleaning solution, such as isopropyl alcohol or a 50/50 mixture of water and isopropyl alcohol, to clean the connector. Avoid using harsh chemicals or abrasive materials that can damage the connector.
The TSW-112-14-G-D is rated for operation up to 105°C, but it's recommended to derate the temperature rating by 10°C for every 1000 meters above sea level. Additionally, high-temperature applications may affect the connector's lifespan and reliability.
Samtec recommends storing the TSW-112-14-G-D in a dry, clean environment with a temperature range of -40°C to 30°C and a relative humidity of 50% or less. Avoid exposing the connector to direct sunlight, moisture, or extreme temperatures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSW-112-14-G-D Overview

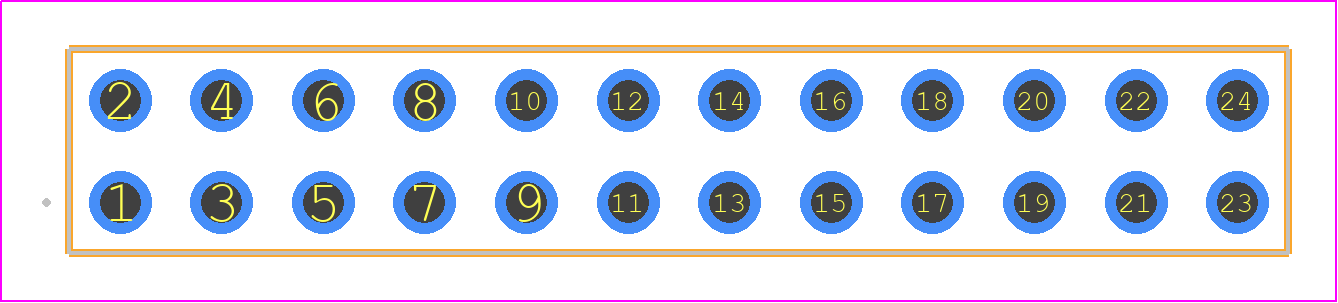

Use the download button to access the TSW-112-14-G-D schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TSW-1,
or try a keyword search, such as Headers and Edge Type Connectors
