The recommended mating sequence for TSW-113-09-G-D is to mate the headers first, followed by the sockets. This ensures proper alignment and prevents damage to the contacts.
Yes, the TSW-113-09-G-D is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection and minimizes the risk of contact damage or disconnection due to vibration.
The maximum operating temperature for the TSW-113-09-G-D is 125°C (257°F). However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
The TSW-113-09-G-D has a gold plating on the contacts, which provides some level of protection against corrosion. However, it's not designed for use in extremely harsh environments. If exposure to moisture or chemicals is a concern, consider using a connector with additional protective features, such as a sealed or hermetically sealed design.
The TSW-113-09-G-D is designed for high-speed signal transmission, with a bandwidth of up to 10 Gbps. However, the actual signal integrity and transmission speed will depend on the specific application, PCB design, and signal quality.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSW-113-09-G-D Overview

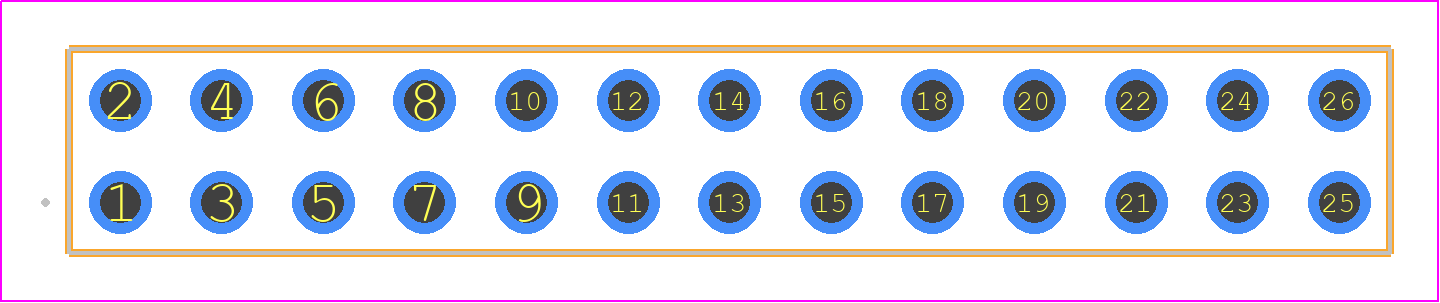

Use the download button to access the TSW-113-09-G-D schematic symbol and PCB footprint.
