The recommended mating sequence for TSW-116-08-G-D is to mate the headers first, followed by the sockets. This ensures proper alignment and prevents damage to the contacts.
Yes, the TSW-116-08-G-D is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection and minimizes the risk of contact damage or disconnection due to vibration.
The TSW-116-08-G-D is rated for operating temperatures ranging from -55°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and Samtec's application notes for specific guidance on using this connector in harsh environments.
The maximum current rating for each contact in the TSW-116-08-G-D is 1.7A. However, it's crucial to consider the overall system design, including the PCB layout, wire gauge, and other factors, to ensure safe and reliable operation.
The TSW-116-08-G-D is designed for a specific pitch and spacing. Using it with a different pitch or spacing may compromise the connector's performance and reliability. It's recommended to consult Samtec's application engineers or use their online tools to find a compatible connector for your specific requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSW-116-08-G-D Overview

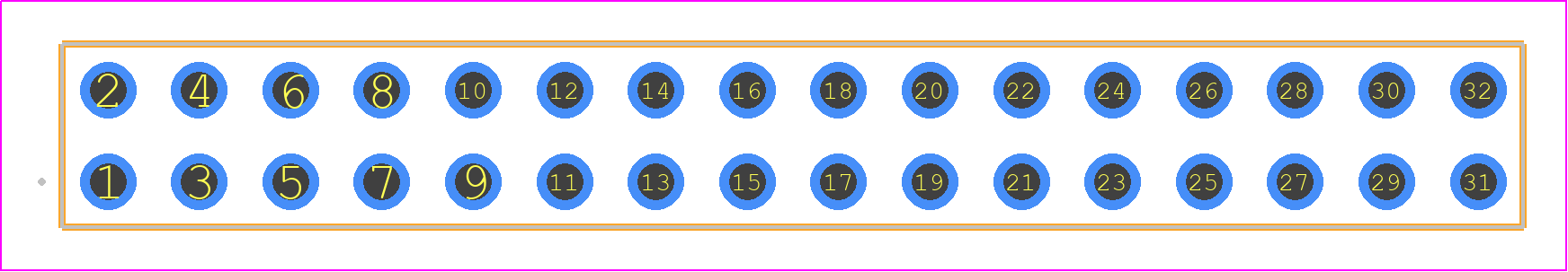

Use the download button to access the TSW-116-08-G-D schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TSW-1,
or try a keyword search, such as Headers and Edge Type Connectors
