The recommended mating sequence for TSW-126-07-G-S is to mate the headers first, followed by the sockets. This ensures proper alignment and prevents damage to the contacts.
Yes, the TSW-126-07-G-S is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection and minimizes the risk of contact damage or disconnection due to vibration.
The maximum operating temperature for the TSW-126-07-G-S is 125°C (257°F). However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
The TSW-126-07-G-S has a sealed construction that provides some level of protection against moisture. However, it's not designed for immersion in water or exposure to high-pressure washdowns. If you need a connector for a wet environment, consider using a connector with a higher IP rating or additional sealing measures.
The typical lead time for delivery of the TSW-126-07-G-S varies depending on the quantity, region, and availability. However, Samtec typically quotes a lead time of 2-4 weeks for standard products. It's recommended to check with authorized distributors or Samtec's customer service for the most up-to-date lead time information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSW-126-07-G-S Overview

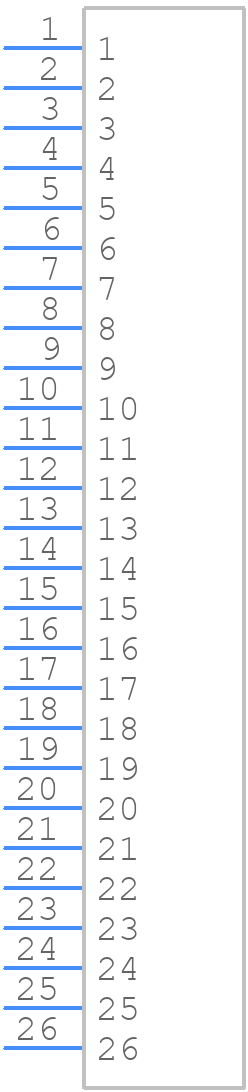

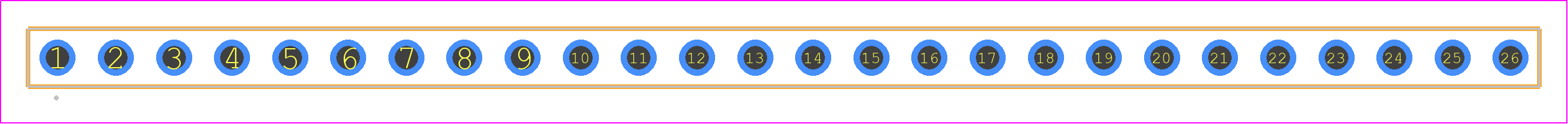

Use the download button to access the TSW-126-07-G-S schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TSW-1,
or try a keyword search, such as Headers and Edge Type Connectors
