The recommended mating sequence for TSW-132-07-L-S is to mate the headers first, followed by the sockets. This ensures proper alignment and prevents damage to the contacts.
Yes, the TSW-132-07-L-S is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection and minimizes the risk of contact damage or disconnection due to vibration.
The TSW-132-07-L-S is rated for operating temperatures ranging from -55°C to 125°C and can withstand humid environments. However, it's essential to follow proper design and assembly guidelines to ensure reliable performance in harsh environments.
The maximum current rating for the TSW-132-07-L-S is 2.9A per contact. However, it's crucial to consider the overall system design, including wire gauge, trace width, and other factors, to ensure safe and reliable operation.
Yes, the TSW-132-07-L-S is designed for automated assembly and can be used with various pick-and-place machines and other automation equipment. Samtec provides detailed assembly guidelines and support for automated assembly processes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSW-132-07-L-S Overview

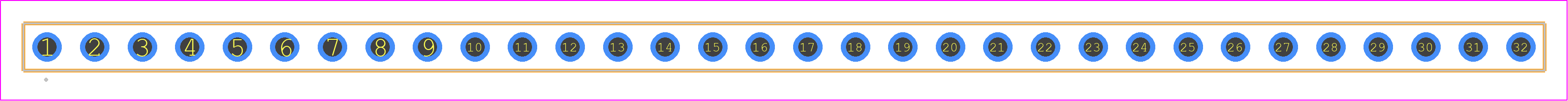

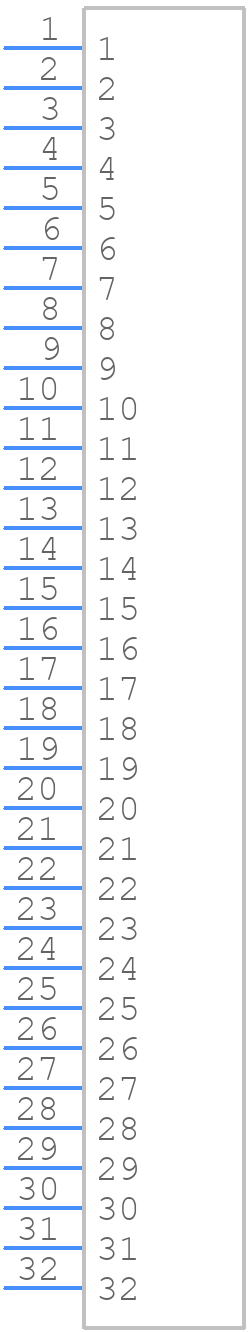

Use the download button to access the TSW-132-07-L-S schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TSW-1,
or try a keyword search, such as Headers and Edge Type Connectors
