Samtec provides a recommended PCB layout and land pattern for the TSW-136-25-L-D in their Application Notes document, which can be found on their website. It's essential to follow these guidelines to ensure proper mating and to prevent damage to the connector.
While the TSW-136-25-L-D is a rugged connector, it's still important to consider the specific vibration and shock requirements of your application. Samtec provides environmental testing data in their datasheet, but it's recommended to consult with their technical support team to determine the connector's suitability for your specific use case.
The TSW-136-25-L-D is designed to accommodate cables with a maximum diameter of 1.5mm. However, it's essential to ensure that the cable size and material meet the connector's specifications to prevent damage or mating issues.
The TSW-136-25-L-D is a high-density connector, but it's not specifically designed for high-speed signal applications. Samtec offers other connectors in their product line that are optimized for high-speed signals, such as the SEARAY or Q Strip series. It's recommended to consult with Samtec's technical support team to determine the best connector for your specific application.
The TSW-136-25-L-D is rated for operating temperatures between -40°C to 105°C and humidity up to 95% RH. However, it's essential to consider the specific environmental requirements of your application and consult with Samtec's technical support team to determine the connector's suitability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSW-136-25-L-D Overview

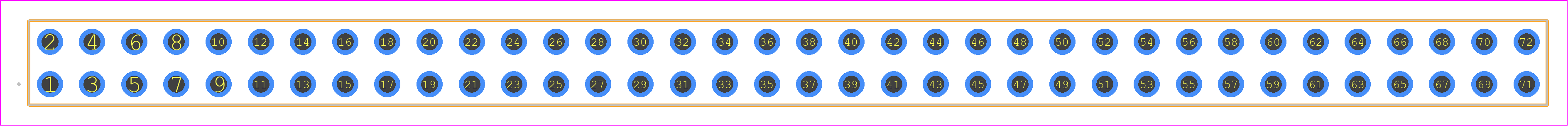

Use the download button to access the TSW-136-25-L-D schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TSW-1,
or try a keyword search, such as Headers and Edge Type Connectors
