Part Image

TSX3704IPT - STMicroelectronics

Description: Analog Comparators Micropower (5uA) 16V quad CMOS comparator, push pull output

Download TSX3704IPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

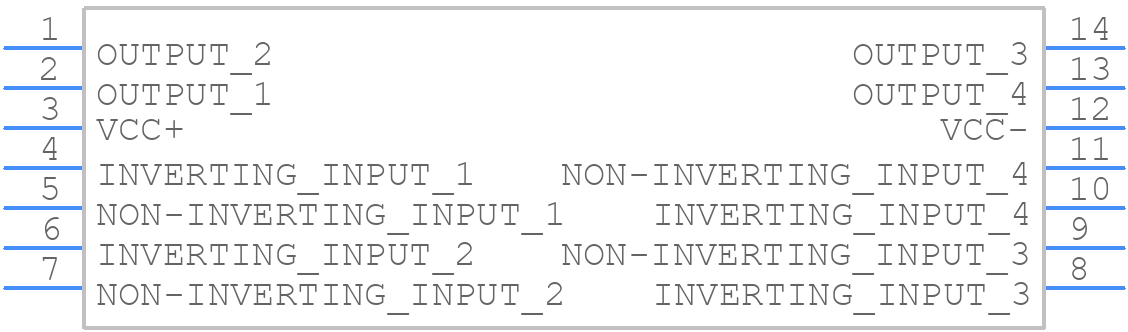

Symbol
TSX3704IPT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSX3704IPT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP14_2022
click to zoom
3D Models
TSX3704IPT - STMicroelectronics - 3D model - Small Outline Packages - TSSOP14_2022
click to zoom

TSX3704IPT Details

  • Manufacturer Part Number:

    TSX3704IPT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-14

  • Manufacturer Package Code:

    TSSOP-14

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.0012 µA

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Response Time-Nom:

    2400 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.028 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

TSX3704IPT Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2352, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The TSX3704IPT requires a specific biasing scheme to achieve optimal linearity and gain. The recommended biasing scheme is described in the datasheet, and it's essential to follow the recommended voltage and current levels to ensure proper operation.
  • The TSX3704IPT is rated for operation from -40°C to 125°C, but the device's performance may degrade at higher temperatures. It's essential to ensure proper thermal management and heat sinking to maintain optimal performance and reliability.
  • STMicroelectronics provides a troubleshooting guide in the application note AN2352, which covers common issues and their solutions. Additionally, engineers can use simulation tools and Spice models to simulate the circuit and identify potential issues before prototyping.
  • The TSX3704IPT is sensitive to electrostatic discharge (ESD), and proper ESD protection measures should be taken during handling, assembly, and operation. STMicroelectronics recommends following the ESD protection guidelines outlined in the datasheet and application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSX3704IPT Overview

Use the download button to access the TSX3704IPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSX37, or try a keyword search, such as Comparators
