TSY-13LNB+ - Mini-Circuits

Description: Low Noise MMIC Amplifier, 30 MHz to 1 GHz

Download TSY-13LNB+ Model
Schematic
symbols

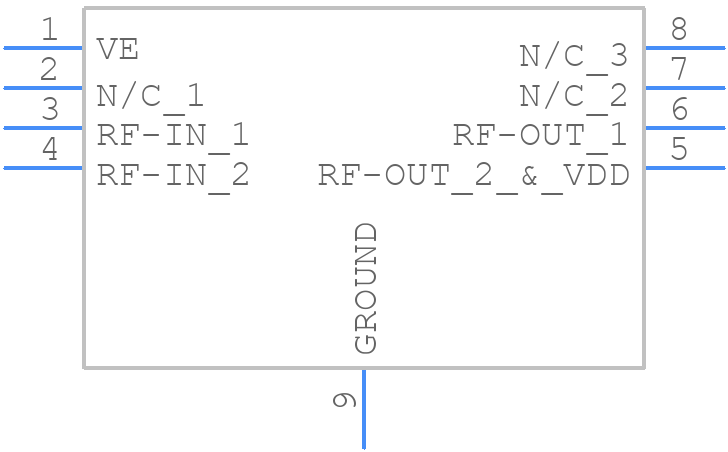

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TSY-13LNB+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - TSY-13LNB+
click to zoom
3D Models
TSY-13LNB+ - Mini-Circuits  - 3D model - Small Outline No-lead - TSY-13LNB+
click to zoom

TSY-13LNB+ Details

  • Manufacturer Part Number:

    TSY-13LNB+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-12-27

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    13.3 dB

  • Input Power-Max (CW):

    10 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    30 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    2.7 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    10.6 mA

  • Surface Mount:

    YES

  • Technology:

    E-PHEMT

  • VSWR-Max:

    1.22

TSY-13LNB+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is essential for the TSY-13LNB+. It is recommended to use a solid ground plane on the PCB and to connect the device's ground pins to it. Additionally, keep the input and output traces as short as possible and use 50-ohm microstrip lines to minimize reflections.
  • The TSY-13LNB+ requires a bias voltage of 12-15V and a bias current of 100-150mA. Ensure that the bias voltage is well-regulated and filtered to prevent noise from affecting the device's performance. Also, use a suitable bias tee or choke to isolate the DC bias from the RF signal.
  • The TSY-13LNB+ can handle input powers up to +10dBm. Exceeding this limit may cause compression or even damage to the device. Ensure that the input power is within the recommended range to maintain optimal performance.
  • The TSY-13LNB+ is a general-purpose amplifier, and its performance can be optimized for specific applications by adjusting the input and output matching networks. Use simulation tools or measurement equipment to optimize the matching networks for your specific frequency range and impedance requirements.
  • The TSY-13LNB+ is specified to operate from -40°C to +85°C. However, the device's performance may degrade at extreme temperatures. Ensure that the device is operated within the recommended temperature range for optimal performance and reliability.
