A good PCB layout for the TSYS01 involves placing the sensor near the thermal center of the board, using a solid ground plane, and minimizing thermal barriers such as vias and traces under the sensor.
The TSYS01 is calibrated during manufacturing, but for high-accuracy applications, users can perform a 2-point or 3-point calibration using a precision temperature reference and a microcontroller or PC-based calibration tool.
The TSYS01 is rated for operation from -40°C to 150°C, but it can tolerate short-term excursions up to 180°C. However, prolonged exposure to temperatures above 150°C may affect its accuracy and lifespan.
To minimize EMI and RFI, use a shielded cable, keep the sensor away from high-frequency sources, and use a low-pass filter or a ferrite bead on the signal lines. Additionally, ensure good PCB layout practices, such as separating analog and digital grounds.
The TSYS01 has a typical response time of 10-30 seconds, depending on the thermal environment. This response time may affect applications that require fast temperature measurements, such as in high-speed thermal profiling or thermal imaging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSYS01 Overview

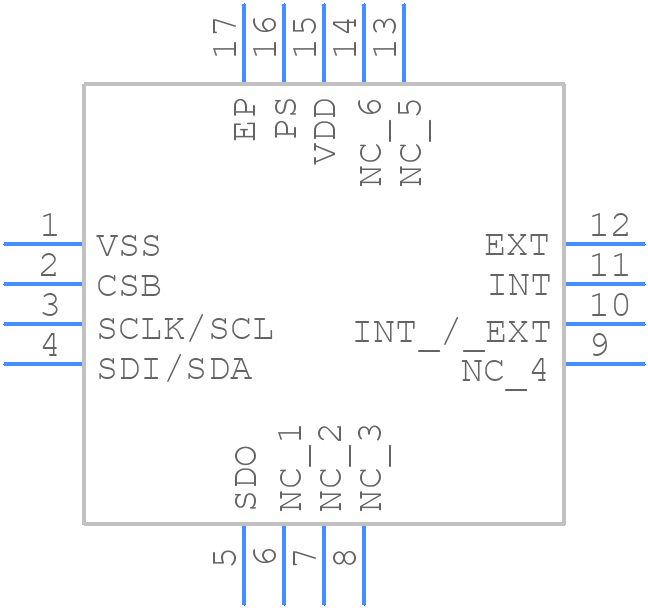

Use the download button to access the TSYS01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSYS0,
or try a keyword search, such as Temperature Sensors
