TT1-6-X65+ - Mini-Circuits

Description: RF Balun 4kHz ~ 300MHz 1:1 6-DIP (0.300", 7.62mm)

Download TT1-6-X65+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

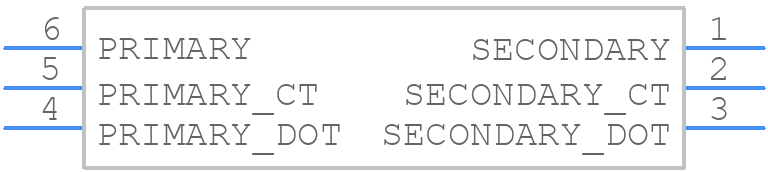

TT1-6-X65+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TT1-6-X65+ - Mini-Circuits PCB footprint - Other - Other - X65
click to zoom
3D Models
TT1-6-X65+ - Mini-Circuits - 3D model - Other - X65
click to zoom

TT1-6-X65+ Details

  • Manufacturer Part Number:

    TT1-6-X65+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    OHMS RATIO IS 1

  • Cut-off Frequency-Max:

    300 MHz

  • Cut-off Frequency-Min:

    0.004 MHz

  • Height:

    5.84 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    7.62 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    6.86 mm

TT1-6-X65+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TT1-6-X65+ has a maximum junction temperature of 150°C. Ensure good airflow around the component, and consider using a heat sink or thermal pad if the operating temperature is expected to be high. Follow the thermal management guidelines in the datasheet and application notes.
  • The TT1-6-X65+ can handle up to 2W of power. However, it's essential to derate the power handling based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
  • The TT1-6-X65+ has a nominal impedance of 50 ohms. Use impedance matching techniques, such as using a pi-network or a transmission line, to match the component's impedance to your system's impedance. Consult the datasheet and application notes for guidance.
  • Mini-Circuits provides reliability data, including MTBF (Mean Time Between Failures), in their datasheet or reliability reports. The TT1-6-X65+ is a high-reliability component, but it's essential to consult the specific reliability data for your application.
