TTCM4-4X+ - Mini-Circuits

Description: 1:4 CORE & WIRE Transformer, 0.5 - 400 MHz, 50Ω 6-SMD, Flat Leads Surface Mount

Download TTCM4-4X+ Model
Schematic
symbols

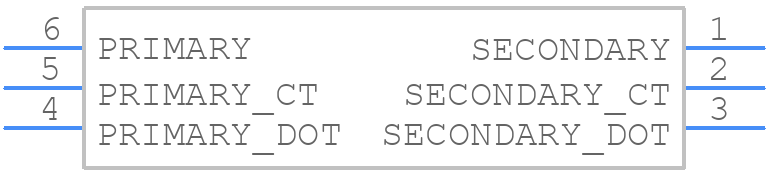

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TTCM4-4X+ - Mini-Circuits PCB footprint - Other - Other - DB1627_2024-5
click to zoom
3D Models
TTCM4-4X+ - Mini-Circuits  - 3D model - Other - DB1627_2024-5
click to zoom

TTCM4-4X+ Details

  • Manufacturer Part Number:

    TTCM4-4X+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    HEIGHT AND WIDTH DIMENSION INCLUDE TERMINALS ALSO, OHM RATIO IS 4

  • Cut-off Frequency-Max:

    400 MHz

  • Cut-off Frequency-Min:

    0.5 MHz

  • Height:

    4.06 mm

  • Insertion Loss:

    3 dB

  • Length:

    4.06 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 13 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TTCM4-4X+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-1, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The TTCM4-4X+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to match the impedance of your system. You can use online impedance matching tools or consult with a RF design expert for assistance.
  • The TTCM4-4X+ can handle up to +24 dBm of input power. Exceeding this limit may cause damage to the device or affect its performance. It's essential to ensure that the input power is within the specified range to maintain the device's reliability and accuracy.
  • Common issues with the TTCM4-4X+ include poor return loss, high insertion loss, or uneven signal splitting. To troubleshoot, check the PCB layout, ensure proper impedance matching, and verify that the device is properly soldered and connected. Consult the datasheet and application notes for more information.
  • The TTCM4-4X+ is designed to operate up to 4 GHz, making it suitable for high-frequency applications such as wireless communication systems, radar systems, and test equipment. However, it's essential to evaluate the device's performance at the specific frequency of interest and consider other factors such as insertion loss and return loss.
