TTD1509B - Toshiba

TTD1509B Details

• Manufacturer Part Number:

  TTD1509B

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Package Description:

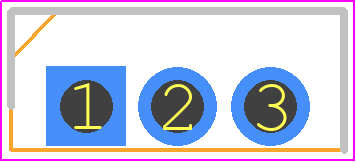

  TO-126N, 3 PIN

• ECCN Code:

  EAR99

• Date Of Intro:

  2016-02-24

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  3

• Collector Current-Max (IC):

  2 A

• Collector-Base Capacitance-Max:

  20 pF

• Collector-Emitter Voltage-Max:

  80 V

• Configuration:

  DARLINGTON WITH BUILT-IN DIODE AND RESISTOR

• DC Current Gain-Min (hFE):

  2000

• JEDEC-95 Code:

  TO-126

• JESD-30 Code:

  R-PSFM-T3

• Number of Elements:

  1

• Number of Terminals:

  3

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Polarity/Channel Type:

  NPN

• Power Dissipation Ambient-Max:

  1.5 W

• Power Dissipation-Max (Abs):

  10 W

• Surface Mount:

  NO

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON

• Transition Frequency-Nom (fT):

  100 MHz

• VCEsat-Max:

  1.5 V
