TUNS100F24 - Cosel

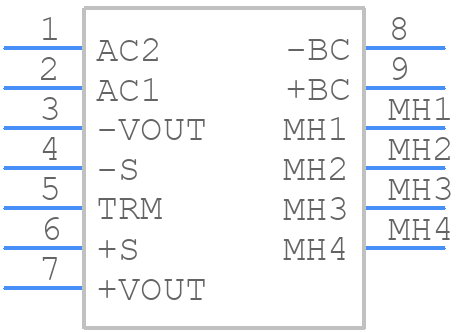

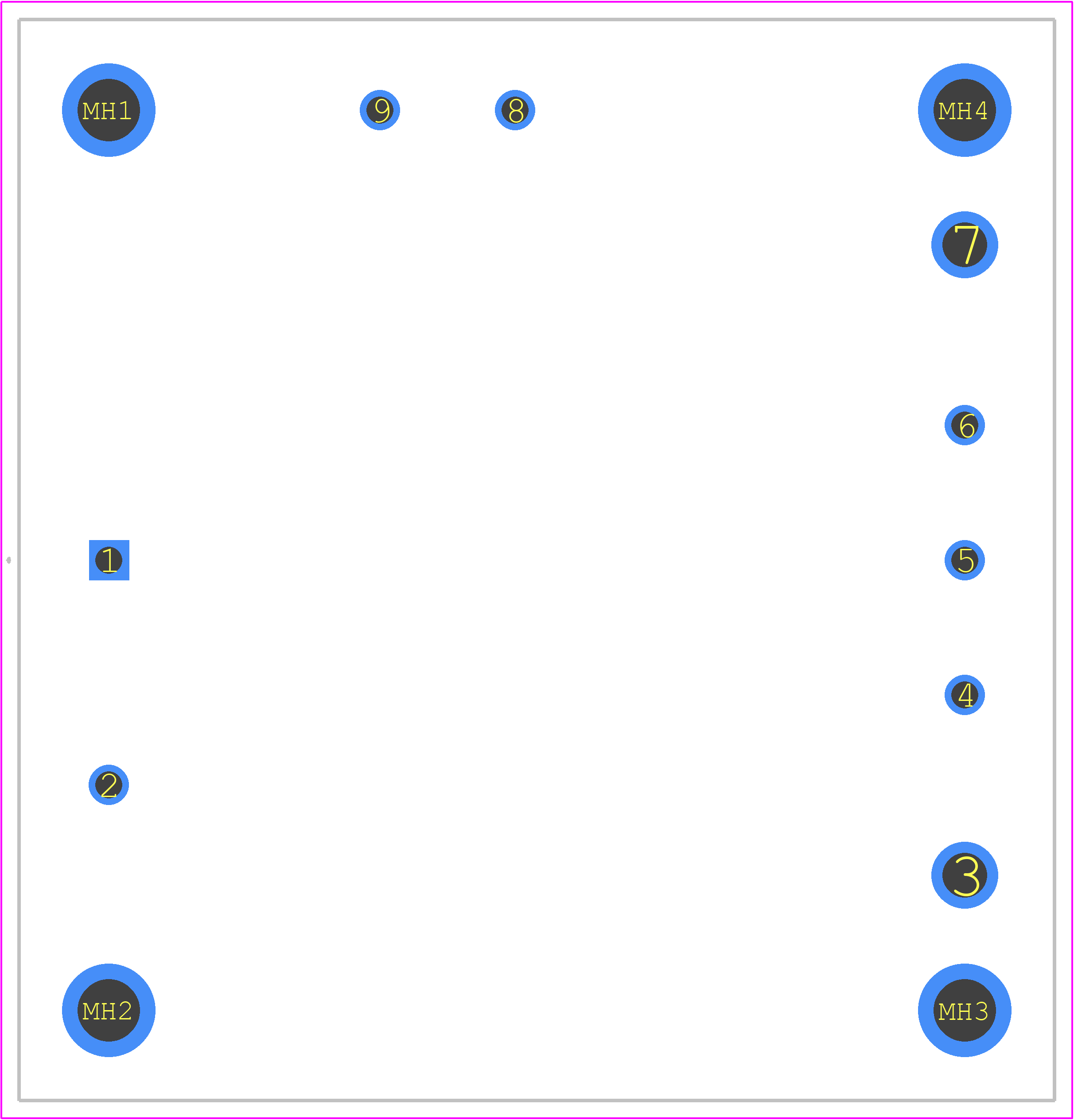

TUNS100F24 Details

• Manufacturer Part Number:

  TUNS100F24

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Package Description:

  PACKAGE-9

• ECCN Code:

  EAR99

• Date Of Intro:

  2016-09-16

• Manufacturer:

  Cosel USA Inc

• YTEOL:

  3

• Additional Feature:

  LG-MAX; WD-MAX

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  C-UL-US, CE, CUL, EN, IEC, UKCA, UL

• Efficiency (Main Output):

  86%

• Input Voltage-Max:

  264 V

• Input Voltage-Min:

  85 V

• Input Voltage-Nom:

  100 V

• JESD-30 Code:

  R-XXMA-P9

• Length:

  61 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  0.2%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  9

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  4.2 A

• Output Voltage-Max:

  26.4 V

• Output Voltage-Min:

  21.6 V

• Output Voltage-Nom:

  24 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  XMA

• Package Equivalence Code:

  MODULE,9LEAD(UNSPEC)

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  260

• Protections:

  OVER CURRENT, OVER VOLTAGE

• Ripple Voltage (Main Out):

  0.088375 Vrms

• Screening Level:

  EN 62368-1

• Seated Height-Max:

  13.2 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  UNSPECIFIED

• Time@Peak Reflow Temperature-Max (s):

  15

• Total Power Output-Max:

  100.8 W

• Trim/Adjustable Output:

  YES

• Width:

  58.4 mm
