Texas Instruments provides a recommended PCB layout in the TUSB1210 datasheet, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure signal integrity, use controlled impedance traces, minimize trace lengths, and avoid vias and stubs. Also, use a common mode filter or a USB 3.2 Gen 2 signal conditioner to reduce jitter and improve signal quality.
The TUSB1210BRHBRQ1 supports cable lengths up to 3 meters (10 feet) for USB 3.2 Gen 2 applications, assuming a good quality cable with minimal attenuation. However, the actual cable length may vary depending on the specific application and cable characteristics.
The TUSB1210BRHBRQ1 has an integrated power management system that can be controlled through the I2C interface. You can use the TUSB1210's power management features to control power delivery, monitor voltage and current, and implement power-saving modes.
The TUSB1210BRHBRQ1 has a maximum junction temperature of 125°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and follow the recommended PCB layout guidelines to minimize thermal resistance. Also, consider using thermal interface materials to improve heat transfer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB1210BRHBRQ1 Overview

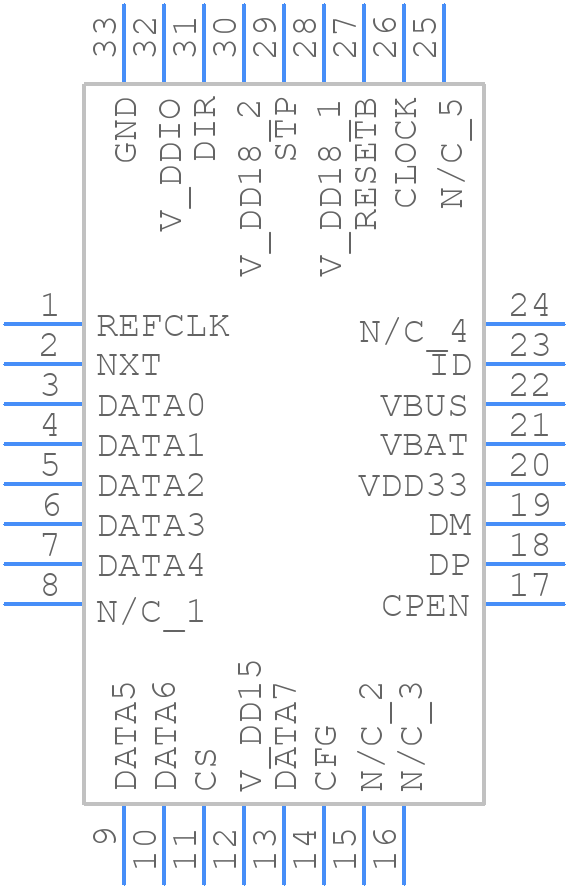

Use the download button to access the TUSB1210BRHBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB1,
or try a keyword search, such as Network Interfaces
