TUSB2036VF - Texas Instruments

Description: 2/3 port Hub for the Universal serial bus with optional serial EEPROM Interface

Download TUSB2036VF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

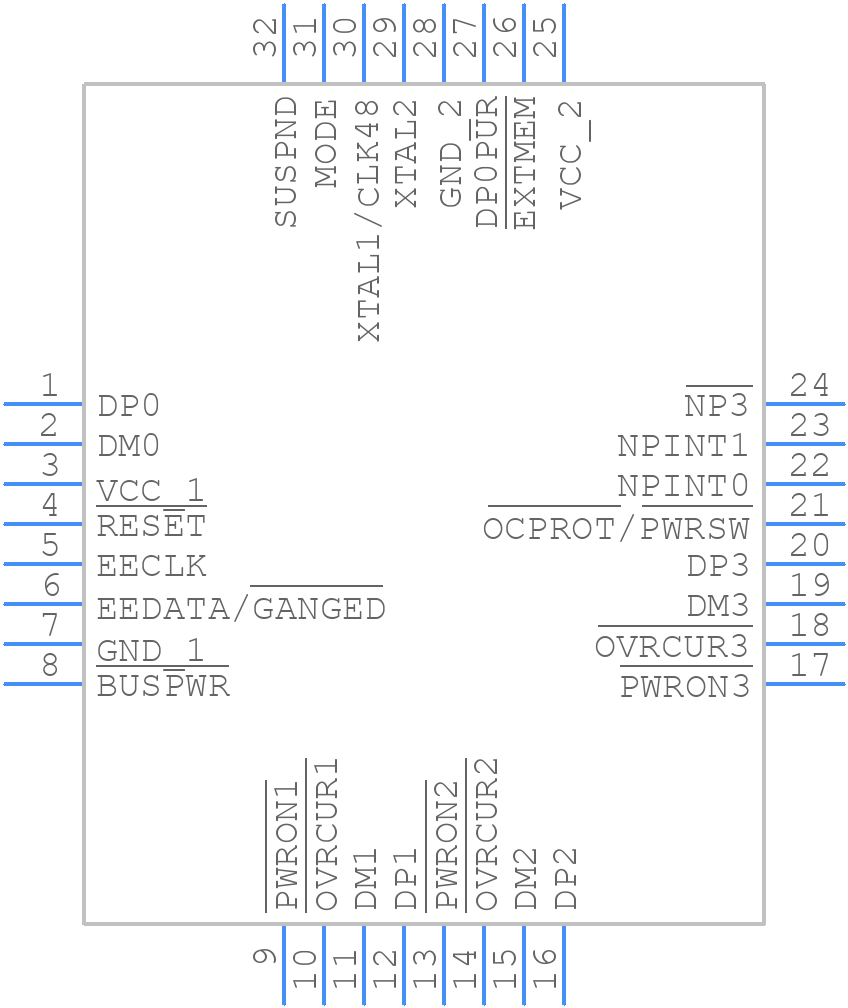

TUSB2036VF - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB2036VF - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - VF0032A
click to zoom
3D Models
TUSB2036VF - Texas Instruments - 3D model - Quad Flat Packages - VF0032A
click to zoom

TUSB2036VF Details

  • Manufacturer Part Number:

    TUSB2036VF

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    USB

  • Clock Frequency-Max:

    48 MHz

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB2036VF Frequently Asked Questions (FAQs)

  • The TUSB2036VF supports cable lengths up to 3 meters (10 feet) for USB 2.0 and 1.5 meters (5 feet) for USB 3.0, assuming a good quality cable with minimal signal attenuation.
  • To ensure signal integrity, use a good quality cable, keep the signal traces short and well-shielded, and follow proper PCB layout and routing guidelines. Additionally, use the recommended termination resistors and capacitors to minimize signal reflections and ringing.
  • Yes, the TUSB2036VF is backward compatible with USB 1.1 devices, but the data transfer rate will be limited to 1.5 Mbps. However, it's recommended to use a USB 2.0 or USB 3.0 device for optimal performance.
  • The TUSB2036VF has an integrated power management system that can detect and manage power delivery to the downstream device. However, it's recommended to follow the USB power management specification and implement proper power management in the downstream device to ensure safe and efficient power delivery.
  • The TUSB2036VF can deliver up to 1.5 A of current to the downstream device, but it's recommended to limit the current to 500 mA to ensure safe and reliable operation.
