Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the USB 2.0 specification for PCB layout guidelines. Additionally, it's essential to minimize the distance between the device and the USB connector, and to use a solid ground plane to reduce EMI.
The TUSB2046BIRHBRG4 requires a single 3.3V power supply. It's essential to ensure that the power supply is stable and well-regulated. The power sequencing requirements are critical, and the device should be powered up after the USB bus is stable. A soft-start power-up sequence is recommended to prevent inrush currents.
The TUSB2046BIRHBRG4 has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, and use a thermal pad or heat sink if necessary. It's also essential to follow the recommended PCB layout guidelines to minimize thermal resistance.
When implementing the TUSB2046BIRHBRG4 in a USB hub application, ensure that the upstream port is connected to the host, and the downstream ports are connected to the devices. Follow the USB 2.0 specification for hub implementation guidelines, and ensure that the device is properly configured for the number of downstream ports.
The TUSB2046BIRHBRG4 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing and assembly. Ensure that the device is handled in an ESD-safe environment, and use ESD protection devices such as TVS diodes if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB2046BIRHBRG4 Overview

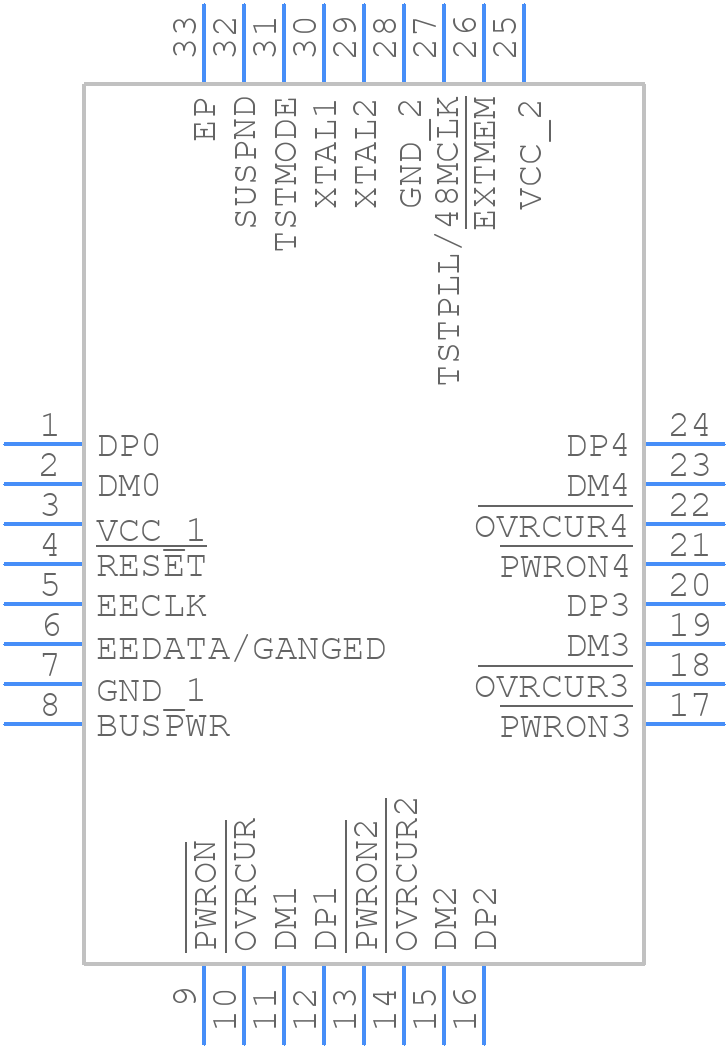

Use the download button to access the TUSB2046BIRHBRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB2,
or try a keyword search, such as Bus Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
