TUSB2046BIRHBRQ1 - Texas Instruments

Description: 4-PORT HUB FOR THE UNIVERSAL SERIAL BUSWITH OPTIONAL SERIAL EEPROM INTERFACE

Download TUSB2046BIRHBRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

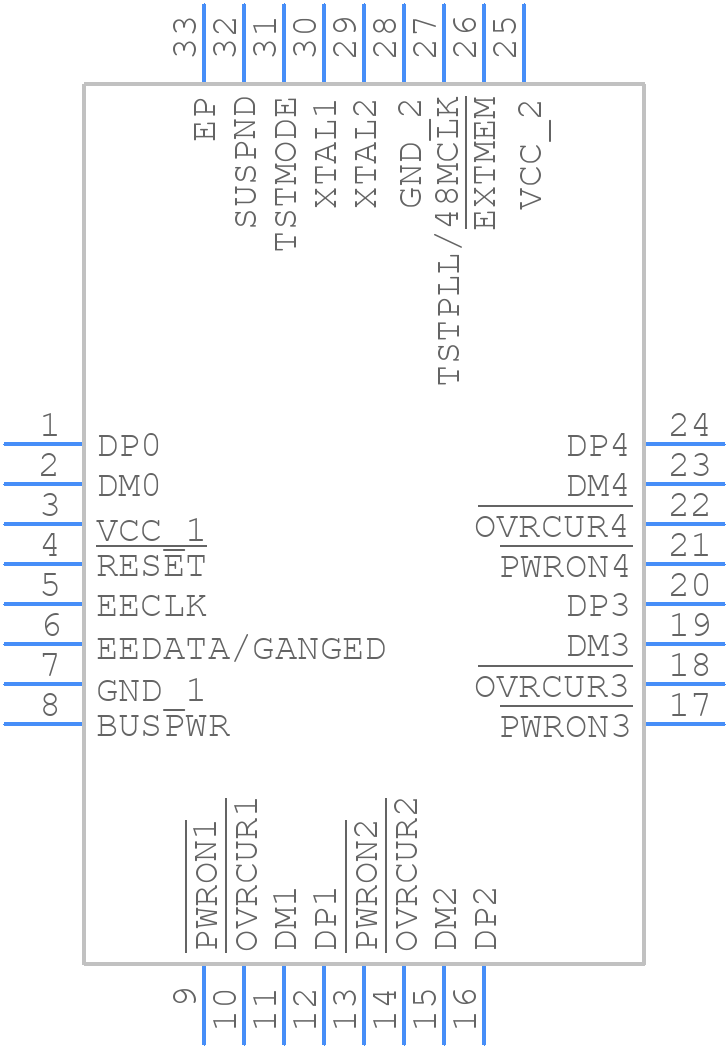

Symbol
TUSB2046BIRHBRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB2046BIRHBRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB (S-PVQFN-N32)
click to zoom
3D Models
TUSB2046BIRHBRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RHB (S-PVQFN-N32)
click to zoom

TUSB2046BIRHBRQ1 Details

  • Manufacturer Part Number:

    TUSB2046BIRHBRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    VQFN-32

  • Pin Count:

    32

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Bus Compatibility:

    USB

  • Clock Frequency-Max:

    6 MHz

  • Data Transfer Rate-Max:

    12 MBps

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB2046BIRHBRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'TUSB2046BIRHBRQ1 PCB Layout Guidelines' application note (SLUA623) for optimal performance.
  • To ensure signal integrity and minimize EMI, follow the guidelines in the 'TUSB2046BIRHBRQ1 Signal Integrity and EMI Considerations' application note (SLUA624). This includes using a solid ground plane, minimizing trace lengths, and using shielding and filtering as needed.
  • The TUSB2046BIRHBRQ1 has a junction temperature range of -40°C to 125°C. To ensure reliable operation, follow the thermal design guidelines in the datasheet, and consider using thermal pads or heat sinks if the device will be operating in high-temperature environments.
  • The TUSB2046BIRHBRQ1 is a USB 3.0 device, but it can be configured for USB 2.0 operation by setting the USB_SPEED_SEL pin to the appropriate state. Refer to the datasheet for specific configuration details.
  • The TUSB2046BIRHBRQ1 has several power management options, including a low-power mode and a suspend mode. Refer to the datasheet for specific details on implementing these modes, and consider using the 'TUSB2046BIRHBRQ1 Power Management' application note (SLUA625) for additional guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB2046BIRHBRQ1 Overview

Use the download button to access the TUSB2046BIRHBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB2, or try a keyword search, such as Bus Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
