TUSB2046IBVF - Texas Instruments

Description: 4-port 12-Mbps USB full-speed hub with optional serial EEPROM interface

Download TUSB2046IBVF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

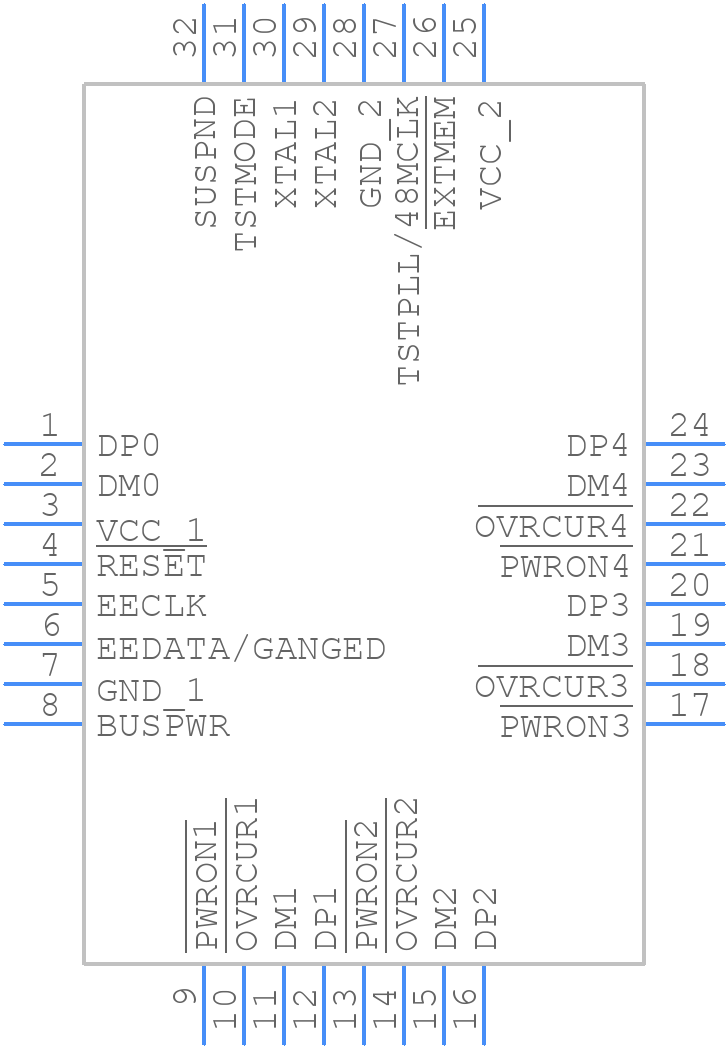

TUSB2046IBVF - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB2046IBVF - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - VF (S-PQFP-G32)
click to zoom
3D Models
TUSB2046IBVF - Texas Instruments - 3D model - Quad Flat Packages - VF (S-PQFP-G32)
click to zoom

TUSB2046IBVF Details

  • Manufacturer Part Number:

    TUSB2046IBVF

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-07-06

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    SUPPORTS 6-MHZ OPERATION THROUGH A CRYSTAL INPUT OR A 48-MHZ INPUT CLOCK

  • Bus Compatibility:

    VBUS

  • Clock Frequency-Max:

    6 MHz

  • Data Transfer Rate-Max:

    1.5 MBps

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB2046IBVF Frequently Asked Questions (FAQs)

  • A good PCB layout for the TUSB2046IBVF involves keeping the USB traces as short as possible, using a solid ground plane, and placing the device close to the USB connector. Additionally, it's recommended to use a common mode filter and a shielded cable to reduce EMI.
  • The TUSB2046IBVF requires a single 3.3V power supply. It's recommended to power the device after the USB bus is powered, and to ensure that the power supply is stable before connecting to the USB bus.
  • The TUSB2046IBVF has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pad on the bottom of the package.
  • To troubleshoot issues with the TUSB2046IBVF, check the USB bus voltage, signal integrity, and device configuration. Use tools like a logic analyzer or oscilloscope to debug the USB signals, and consult the TI support resources for additional guidance.
  • The TUSB2046IBVF is a USB hub controller and does not require firmware or software to operate. However, the device connected to the hub may require specific drivers or software to function properly.
