Texas Instruments provides a recommended PCB layout in the TUSB2077A datasheet, which includes guidelines for component placement, routing, and grounding to minimize electromagnetic interference (EMI) and ensure reliable operation.
The TUSB2077APTG4 is a USB 2.0 high-speed hub controller, and it automatically detects and configures the USB speed based on the connected device. However, you can use the device's registers to configure the hub for low-speed or full-speed operation if needed.
The power consumption of TUSB2077APTG4 depends on the operating mode and the number of connected devices. According to the datasheet, the typical power consumption is around 250 mA. To reduce power consumption, you can use the device's power management features, such as suspend mode, and optimize the system design to minimize power consumption.
The TUSB2077APTG4 has built-in overcurrent protection (OCP) and short-circuit protection (SCP) features. You can configure the OCP threshold using the device's registers, and the hub will automatically disconnect the port if an overcurrent condition is detected.
Yes, the TUSB2077APTG4 is backward compatible with USB 3.0 and USB 3.2 host controllers. However, the hub will only operate at USB 2.0 high-speed mode, and the host controller must be configured to support USB 2.0 operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB2077APTG4 Overview

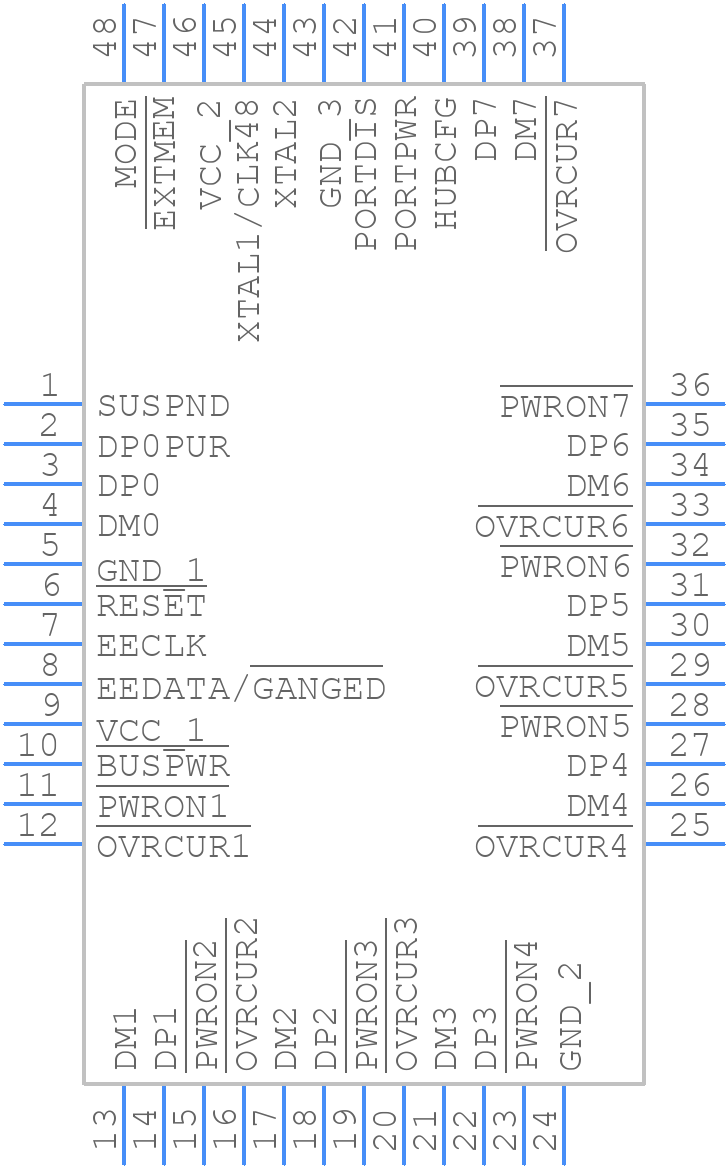

Use the download button to access the TUSB2077APTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB2,
or try a keyword search, such as Bus Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
