Texas Instruments provides a recommended PCB layout in the TUSB2077A datasheet, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure proper operation and minimize electromagnetic interference (EMI).
The TUSB2077APTRG4 is a USB 2.0 high-speed repeater, and it automatically detects the USB speed of the connected device. However, you can configure the device to operate in low-speed or full-speed mode by using the SPEED pin. You can also use the SUSPEND pin to put the device in a low-power state.
The TUSB2077APTRG4 can support cable lengths up to 5 meters (16.4 feet) while maintaining USB 2.0 high-speed operation. However, the actual cable length supported may vary depending on the quality of the cable, the environment, and the specific application.
To ensure EMC with the TUSB2077APTRG4, follow proper PCB layout and design guidelines, use shielding and grounding techniques, and implement EMI filtering and shielding on the USB cables. Additionally, ensure that the device is operated within its specified operating conditions and that the system is designed to meet relevant EMC standards.
The TUSB2077APTRG4 has a typical power consumption of 150 mA during high-speed operation and 50 mA during low-power mode. The device also has a shutdown mode that reduces power consumption to less than 1 mA.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB2077APTRG4 Overview

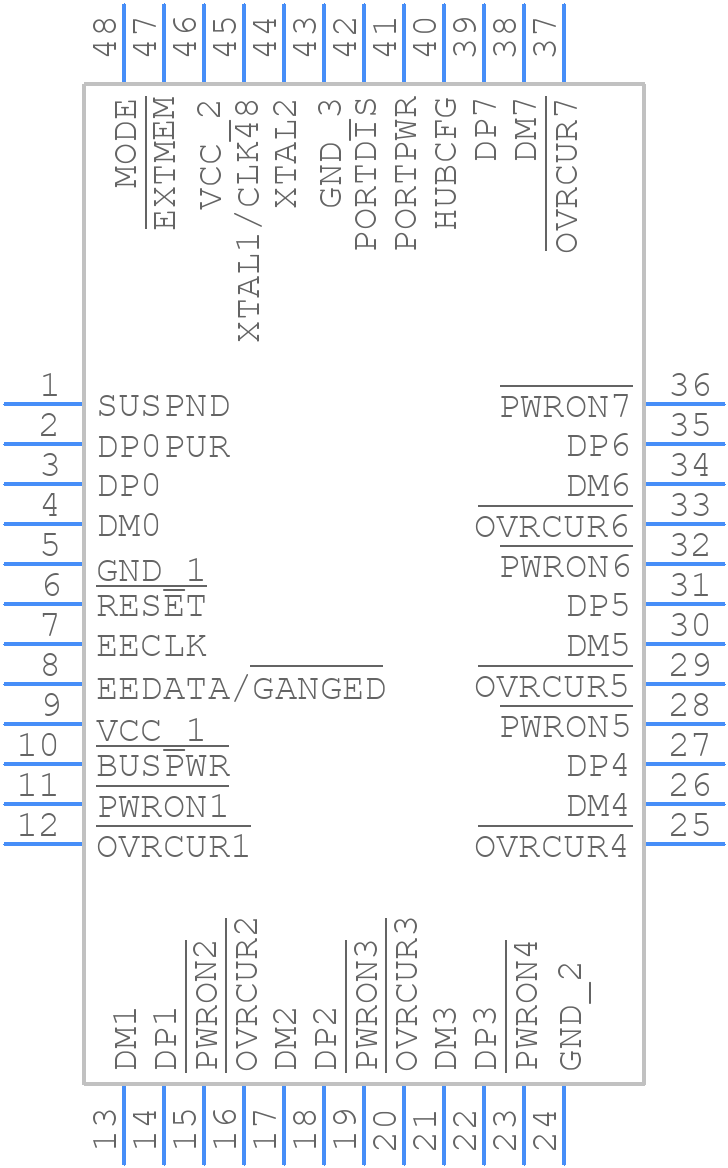

Use the download button to access the TUSB2077APTRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB2,
or try a keyword search, such as Bus Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
