Texas Instruments provides a recommended PCB layout in the TUSB211ARWBRQ1 datasheet, but it's also recommended to follow the guidelines in the 'High-Speed Layout Guidelines' application note (SLVA466) for optimal performance.
To ensure signal integrity, use controlled impedance traces, minimize trace lengths, and use signal shielding. Also, follow the guidelines in the 'USB 2.0 Signal Integrity' application note (SLVA082) for proper signal routing and termination.
The TUSB211ARWBRQ1 supports cable lengths up to 3 meters, but this can vary depending on the specific application and cable quality. It's recommended to follow the USB 2.0 specification for cable length and quality guidelines.
Yes, the TUSB211ARWBRQ1 is backward compatible with USB 3.0 and USB 3.2 hosts, but it will only operate at USB 2.0 speeds. If you need USB 3.0 or USB 3.2 speeds, consider using a different device, such as the TUSB1310 or TUSB214.
The TUSB211ARWBRQ1 has an internal voltage regulator, but it's recommended to use an external power supply to ensure reliable operation. Follow the power management guidelines in the datasheet and consider using a power management IC, such as the TPS2115A, for more complex power management requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB211ARWBRQ1 Overview

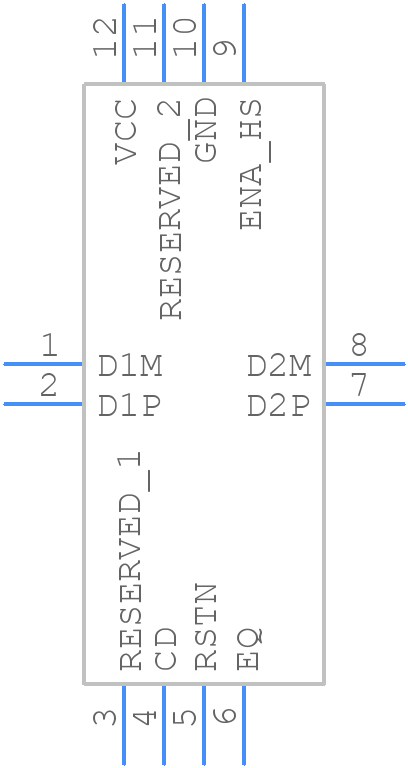

Use the download button to access the TUSB211ARWBRQ1 schematic symbol, PCB footprint, and 3D model.
