TUSB211RWBR - Texas Instruments

Description: USB 2.0 480 Mbps High-Speed Signal Conditioner

Download TUSB211RWBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

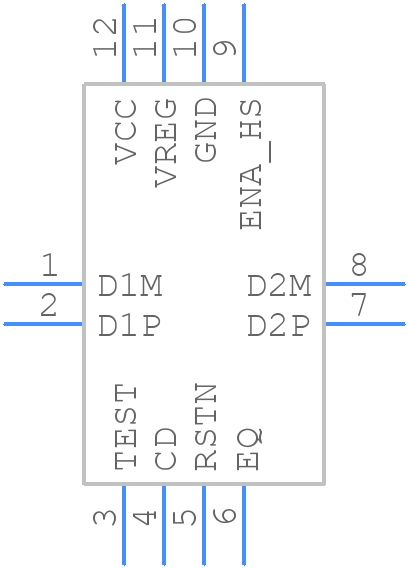

Symbol
TUSB211RWBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB211RWBR - Texas Instruments PCB footprint - Other - Other - TUSB214RWBT-1
click to zoom
3D Models
TUSB211RWBR - Texas Instruments - 3D model - Other - TUSB214RWBT-1
click to zoom

TUSB211RWBR Details

  • Manufacturer Part Number:

    TUSB211RWBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Interface IC Type:

    USB SIGNAL CONDITIONER

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.4 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TUSB211RWBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'TUSB211RWBR PCB Layout Guidelines' application note (SLUA623) for optimal performance.
  • To ensure signal integrity, use a differential pair for the USB data lines (D+ and D-), keep the traces as short as possible, and use a common mode filter or a USB signal repeater if necessary. Also, follow the USB 2.0 specification for cable and connector requirements.
  • The TUSB211RWBR supports cable lengths up to 3 meters (10 feet) for USB 2.0 high-speed devices, but this can vary depending on the specific application and cable quality. It's recommended to follow the USB 2.0 specification for cable and connector requirements.
  • The TUSB211RWBR has an internal voltage regulator, but it's recommended to use an external power supply or a voltage regulator module (VRM) to ensure stable power supply to the device. Follow the power management guidelines in the datasheet and application notes.
  • The TUSB211RWBR has a maximum junction temperature of 150°C. Ensure good thermal design practices, such as using a heat sink or thermal pad, to keep the device within the recommended operating temperature range.
