Texas Instruments provides a recommended PCB layout in the TUSB214RWBT datasheet, but it's also recommended to follow the USB 2.0 specification for PCB layout guidelines. Additionally, TI provides a PCB layout example in the TUSB214RWBT evaluation module documentation.
The TUSB214RWBT has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during manufacturing and assembly. Additionally, consider adding external ESD protection devices, such as TVS diodes, to protect the device from external ESD events.
The TUSB214RWBT supports USB 2.0 high-speed data transfer rates, which have a maximum cable length of 3 meters (10 feet). However, the actual cable length may be limited by the specific application and the quality of the cable.
The TUSB214RWBT is a USB 2.0 transceiver, and it's not compatible with USB 3.0 or USB 3.2 applications. For USB 3.0 or USB 3.2 applications, consider using a USB 3.0 or USB 3.2 transceiver, such as the TUSB1310 or TUSB416.
The TUSB214RWBT has a low-power mode that can be enabled by asserting the SUSPEND pin low. Additionally, consider using the device's automatic suspend mode, which can be enabled by setting the appropriate register bits. Refer to the datasheet for more information on low-power operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB214RWBT Overview

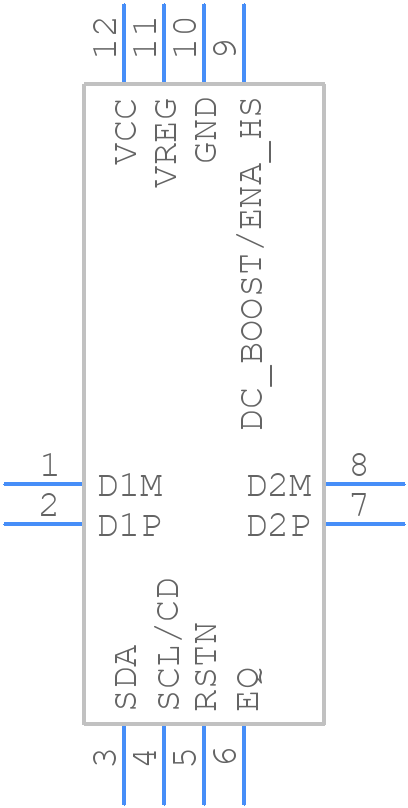

Use the download button to access the TUSB214RWBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB2,
or try a keyword search, such as Other Interface ICs
