Texas Instruments provides a recommended PCB layout in the TUSB215IRGYT datasheet (Section 10.1) and in the TUSB215IRGYT Evaluation Module User's Guide (SLUU444). It's essential to follow these guidelines to minimize signal integrity issues and ensure reliable operation.
The TUSB215IRGYT requires a specific power sequencing and voltage regulation scheme. TI recommends using an external voltage regulator (e.g., TPS63050) to generate the required 1.8V and 3.3V supply voltages. The power sequencing should follow the order: VCC, VDD, and then VBUS. Refer to the datasheet (Section 7.3) and the TPS63050 datasheet for more information.
The TUSB215IRGYT is sensitive to electrostatic discharge (ESD). To ensure ESD protection, TI recommends using ESD protection devices (e.g., TPD2EUSB30) and following proper PCB design practices, such as using a ground plane, minimizing trace lengths, and avoiding sharp corners. Refer to the datasheet (Section 10.2) and the TPD2EUSB30 datasheet for more information.
The TUSB215IRGYT can operate in either USB 2.0 or USB 3.0 mode. To configure the device, you need to set the MODE pin accordingly. For USB 2.0 operation, tie the MODE pin to GND, and for USB 3.0 operation, tie it to VCC. Additionally, you may need to adjust the external resistors and capacitors depending on the operating mode. Refer to the datasheet (Section 7.1) for more information.
The TUSB215IRGYT can generate heat during operation, especially at high speeds. To ensure reliable operation, TI recommends using a thermal pad on the PCB, providing adequate airflow, and using a heat sink if necessary. Refer to the datasheet (Section 10.3) for more information on thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB215IRGYT Overview

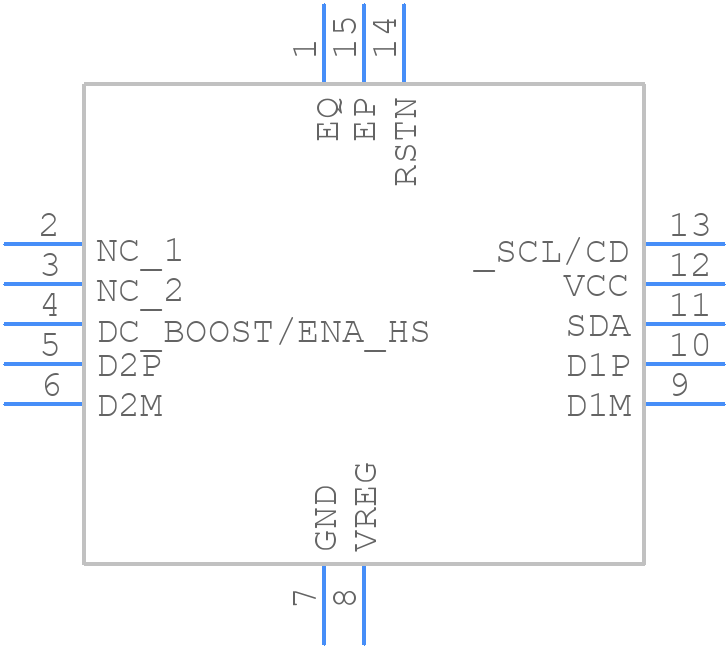

Use the download button to access the TUSB215IRGYT schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB2,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
