Texas Instruments provides a recommended PCB layout in the TUSB217ARWBR datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, TI recommends using a 4-layer PCB with a solid ground plane to minimize noise and EMI.
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal design and layout guidelines. This includes providing adequate heat sinking, using thermal vias, and ensuring good airflow around the device. Additionally, TI recommends derating the device's operating temperature based on the ambient temperature and power dissipation.
Using a non-compliant cable in a USB 3.0 application with the TUSB217ARWBR can result in signal degradation, increased jitter, and reduced data transfer rates. It is essential to use compliant cables that meet the USB 3.0 specification to ensure reliable operation and optimal performance.
To troubleshoot issues with the TUSB217ARWBR, TI recommends using oscilloscopes and signal analyzers to measure signal quality and integrity. Additionally, engineers can use TI's USB 3.0 signal integrity tool to analyze and debug signal issues. It is also essential to review the device's datasheet and application notes to ensure proper device operation and configuration.
The TUSB217ARWBR has built-in ESD protection and latch-up prevention measures, including ESD diodes and clamp circuits. However, it is still essential to follow proper ESD handling and storage procedures to prevent damage to the device. Additionally, TI recommends using ESD protection devices and latch-up prevention circuits in the system design to ensure overall system reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB217ARWBR Overview

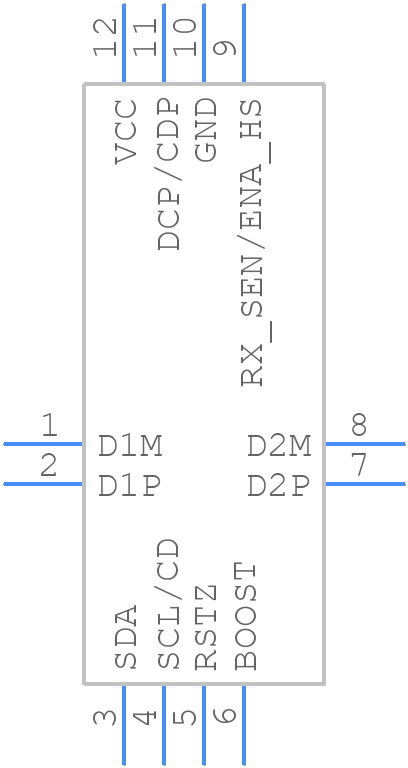

Use the download button to access the TUSB217ARWBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB2,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
