TUSB217RGYTQ1 - Texas Instruments

Description: USB 2.0 signal conditioner

Download TUSB217RGYTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

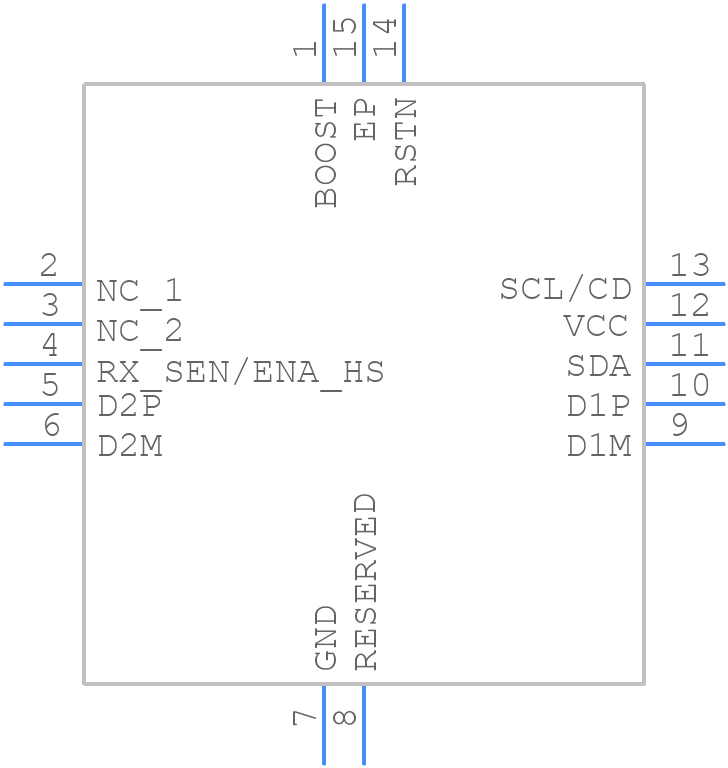

Symbol
TUSB217RGYTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB217RGYTQ1 - Texas Instruments PCB footprint - Other - Other - TUSB217RGYTQ1-3
click to zoom
3D Models
TUSB217RGYTQ1 - Texas Instruments - 3D model - Other - TUSB217RGYTQ1-3
click to zoom

TUSB217RGYTQ1 Details

  • Manufacturer Part Number:

    TUSB217RGYTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    USB SIGNAL CONDITIONER

  • JESD-30 Code:

    S-PQCC-N14

  • JESD-609 Code:

    e3

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    36 mA

  • Supply Voltage-Max:

    6.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

TUSB217RGYTQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TUSB217RGYTQ1 involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing the device close to the USB connector. TI provides a recommended PCB layout in the datasheet and application notes.
  • The TUSB217RGYTQ1 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
  • The TUSB217RGYTQ1 supports USB 2.0 high-speed data transfer rates, which are limited to 3 meters (10 feet) of cable length. However, the actual cable length may vary depending on the specific application and cable quality.
  • The TUSB217RGYTQ1 is a USB 2.0 repeater, and it's not designed to support USB 3.0 or USB 3.2 speeds. For USB 3.0 or USB 3.2 applications, you'll need a different device, such as the TUSB926 or TUSB1046.
  • The TUSB217RGYTQ1 is a plug-and-play device that doesn't require any configuration. Simply connect it to the USB bus and it will automatically detect the signal and amplify it as needed.
