- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TUSB2E111YCGR
- Part Number TUSB2E111YCGR
- Manufacturer Texas Instruments
- Pin Count 15
- Part Category Integrated Circuit
- Package Category BGA
- Footprint Name BGA - DSBGA_2023
- Released Date Jan 27, 2023
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TUSB2E111YCGR Details
-
Manufacturer Part Number:
TUSB2E111YCGR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Interface IC Type:
INTERFACE CIRCUIT
TUSB2E111YCGR Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the TUSB2E111YCGR datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, the TI website offers a PCB layout guide and a layout checklist to ensure optimal performance.
-
The TUSB2E111YCGR is a USB 2.0 high-speed (HS) and full-speed (FS) transceiver, and it can be configured for different USB speeds using the USB_SPEED pin. The USB_SPEED pin can be tied to VCC or GND to select HS or FS mode, respectively. Additionally, the device can be configured using the I2C interface to select the desired USB speed.
-
The TUSB2E111YCGR supports USB 2.0 high-speed (HS) and full-speed (FS) modes, and the maximum cable length depends on the mode. For HS mode, the maximum cable length is 3 meters, while for FS mode, it is 5 meters. However, the actual cable length may vary depending on the cable quality, noise environment, and other factors.
-
The TUSB2E111YCGR has built-in electrostatic discharge (ESD) protection, but additional protection measures may be necessary to ensure reliable operation. Texas Instruments recommends using ESD protection devices, such as TVS diodes, on the USB lines to protect against ESD events. Additionally, proper PCB design and layout practices, such as using guard rings and ESD-safe components, can help minimize the risk of ESD damage.
-
The power consumption of the TUSB2E111YCGR depends on the operating mode and the USB speed. In HS mode, the typical power consumption is around 150 mA, while in FS mode, it is around 50 mA. The device also has a low-power standby mode, which reduces power consumption to around 10 μA. The actual power consumption may vary depending on the application and operating conditions.
Trust Checks
Community Provided
System Verified
Community Approved
TUSB2E111YCGR Overview

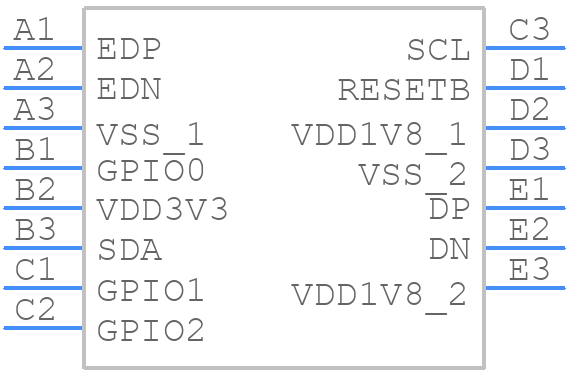

Use the download button to access the TUSB2E111YCGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB2,
or try a keyword search, such as Other Interface ICs
