Texas Instruments provides a recommended PCB layout in the TUSB2E22YCGT datasheet, which includes guidelines for component placement, routing, and grounding. It is essential to follow these guidelines to minimize electromagnetic interference (EMI) and ensure reliable operation.
To configure the TUSB2E22YCGT for USB 2.0 high-speed operation, connect the MODE pin to VCC, and ensure that the device is powered from a 3.3V supply. Additionally, the device must be connected to a USB 2.0-compliant host or hub.
The TUSB2E22YCGT supports cable lengths up to 3 meters (10 feet) for USB 2.0 high-speed operation. However, the actual cable length may vary depending on the specific application and cable quality.
To ensure EMC with the TUSB2E22YCGT, follow proper PCB design and layout guidelines, use shielding and grounding techniques, and ensure that the device is properly decoupled from the power supply. Additionally, consider using EMI filters or common-mode chokes to reduce electromagnetic radiation.
The TUSB2E22YCGT has a typical power consumption of 150 mA during active operation and 50 μA during suspend mode. However, the actual power consumption may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB2E22YCGT Overview

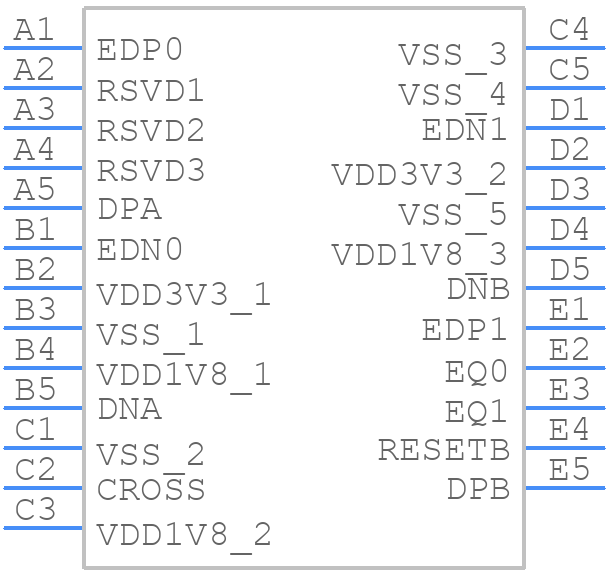

Use the download button to access the TUSB2E22YCGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB2,
or try a keyword search, such as Other Interface ICs
