Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines.
The TUSB319IDRFRQ1 requires a specific power sequencing order to ensure proper operation. The recommended power-up sequence is VCC, then VDD, and finally VBUS. The power-down sequence should be reversed.
The TUSB319IDRFRQ1 supports cable lengths up to 3 meters, but this can vary depending on the specific application and cable quality. It's recommended to use high-quality cables and follow USB 3.2 Gen 1 specifications for optimal performance.
The TUSB319IDRFRQ1 is a USB 3.2 Gen 1 redriver, but it can be used in USB-C applications with some additional circuitry. Texas Instruments provides application notes and reference designs for using the TUSB319IDRFRQ1 in USB-C applications.
The TUSB319IDRFRQ1 has a maximum junction temperature of 125°C. To ensure reliable operation, it's recommended to follow proper thermal management practices, such as using a heat sink, thermal vias, and thermal pads, and ensuring good airflow around the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB319IDRFRQ1 Overview

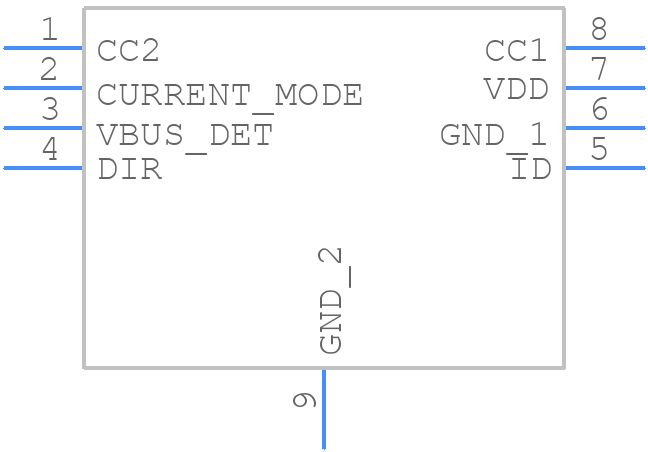

Use the download button to access the TUSB319IDRFRQ1 schematic symbol, PCB footprint, and 3D model.
