TUSB320HAIRWBR - Texas Instruments

Description: USB Type-C Configuration Channel Logic and Port Control

Download TUSB320HAIRWBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

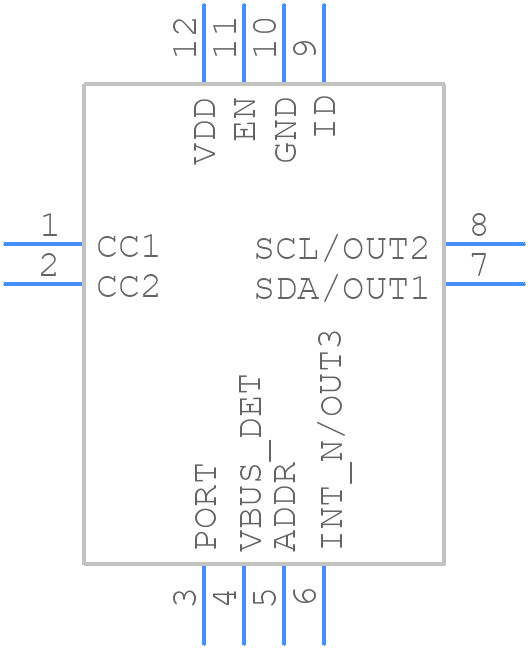

Symbol
TUSB320HAIRWBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB320HAIRWBR - Texas Instruments PCB footprint - Other - Other - RWB0012A
click to zoom
3D Models
TUSB320HAIRWBR - Texas Instruments - 3D model - Other - RWB0012A
click to zoom

TUSB320HAIRWBR Details

  • Manufacturer Part Number:

    TUSB320HAIRWBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C, USB

  • Clock Frequency-Max:

    0.4 MHz

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.063SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.4 mm

  • Supply Current-Max:

    0.07 mA

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB320HAIRWBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TUSB320HAIRWBR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The TUSB320HAIRWBR can be configured for different USB speeds using the USB_SPEED_SEL pins. For example, to configure for USB 2.0, tie USB_SPEED_SEL[1:0] to 00b, and for USB 3.2 Gen 1, tie USB_SPEED_SEL[1:0] to 01b. Refer to the datasheet for more information on speed selection.
  • The TUSB320HAIRWBR has several power management options, including a low-power mode that can be enabled by asserting the PWROFF pin. Additionally, the device can be powered down using the USB 2.0 suspend mode or the USB 3.2 Gen 1 U1/U2/U3 low-power states.
  • The TUSB320HAIRWBR has an overcurrent protection feature that can be enabled by connecting an external resistor to the OCP pin. The device will then limit the current to the programmed value to prevent damage from overcurrent conditions.
  • The TUSB320HAIRWBR has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. Additionally, the device has a thermal shutdown feature that will disable the device if the junction temperature exceeds 150°C.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB320HAIRWBR Overview

Use the download button to access the TUSB320HAIRWBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB3, or try a keyword search, such as Bus Controllers
