A good PCB layout is crucial for the TUSB320HIRWBR. TI recommends a 4-layer PCB with a solid ground plane, and to keep the high-speed signals away from the power planes. Also, use a common mode filter and a shielded cable to minimize EMI.
To ensure reliable operation over the full industrial temperature range (-40°C to 85°C), make sure to follow the recommended operating conditions, use a suitable thermal design, and consider the device's power consumption and thermal dissipation.
For ESD protection, use a TVS diode or a dedicated ESD protection IC, and ensure that the device is connected to a solid ground plane. Also, follow the recommended PCB layout and routing guidelines to minimize the risk of ESD damage.
To optimize power consumption, use the device's low-power modes, such as the suspend mode, and adjust the clock frequency according to your application's requirements. Additionally, consider using a low-dropout regulator (LDO) to minimize power consumption.
TI recommends performing tests such as signal integrity testing, eye pattern testing, and compliance testing to ensure the device meets the USB specification. Also, validate the device's performance using tools such as oscilloscopes and protocol analyzers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB320HIRWBR Overview

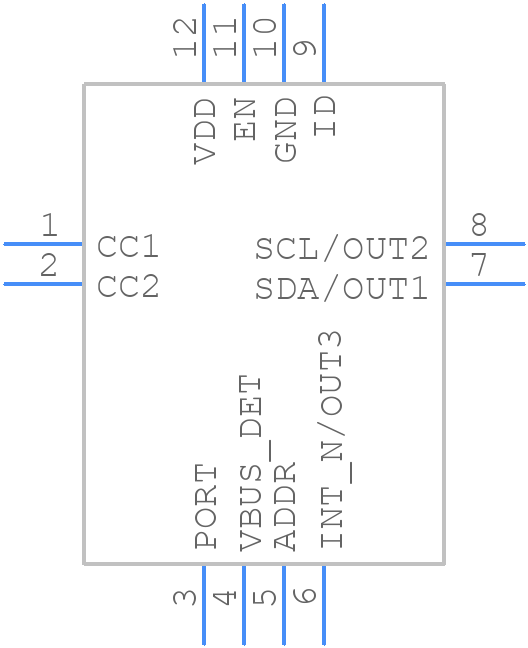

Use the download button to access the TUSB320HIRWBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB3,
or try a keyword search, such as Bus Controllers
