TUSB320IRWBR - Texas Instruments

Description: USB Interface IC TUSB320 USB Type-C Config Channel Logic

Download TUSB320IRWBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

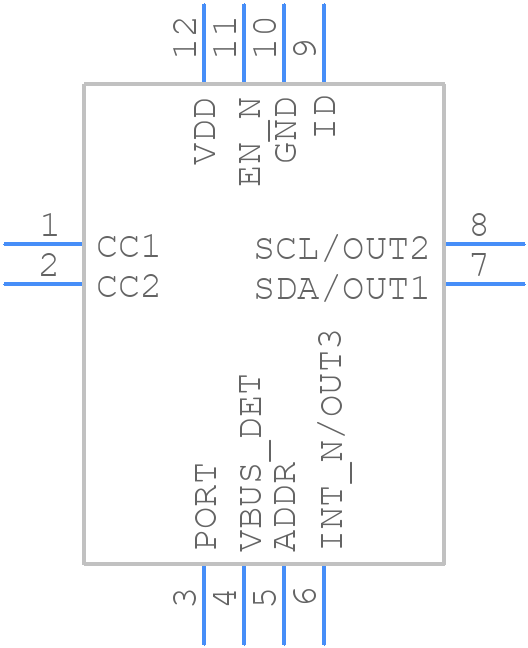

Symbol
TUSB320IRWBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB320IRWBR - Texas Instruments PCB footprint - Other - Other - RWB0012A
click to zoom
3D Models
TUSB320IRWBR - Texas Instruments - 3D model - Other - RWB0012A
click to zoom

TUSB320IRWBR Details

  • Manufacturer Part Number:

    TUSB320IRWBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C, USB

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.063SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.4 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB320IRWBR Frequently Asked Questions (FAQs)

  • The TUSB320IRWBR supports cable lengths up to 3 meters (10 feet) for USB 2.0 and 1.5 meters (5 feet) for USB 3.0, assuming a good quality cable with minimal signal attenuation.
  • To ensure signal integrity and minimize EMI, use a shielded cable, keep the signal traces as short as possible, and use a common mode choke or ferrite bead to filter out high-frequency noise.
  • The TUSB320IRWBR has a typical active power consumption of 150 mA (USB 2.0) and 250 mA (USB 3.0). Ensure that your system's power budget can accommodate this additional power draw.
  • When using multiple USB devices and hubs, ensure that the total current drawn from the bus does not exceed the maximum allowed current. Use a USB hub with overcurrent protection and follow the USB specification guidelines for device and hub implementation.
  • The TUSB320IRWBR has an operating temperature range of -40°C to 85°C. Ensure good airflow, use a heat sink if necessary, and follow thermal design guidelines to prevent overheating and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB320IRWBR Overview

Use the download button to access the TUSB320IRWBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB3, or try a keyword search, such as Bus Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
