Texas Instruments provides a recommended PCB layout in the datasheet, but for optimal performance, it's essential to follow the layout guidelines, including keeping the signal traces short, using a solid ground plane, and minimizing vias and layer changes.
To ensure EMC compliance, follow the recommended PCB layout, use a shielded cable, and consider adding EMI filters or ferrite beads to the USB lines. Additionally, ensure the device is properly grounded and follow the guidelines in the TI application note 'EMC Compliance for USB Devices'.
The maximum cable length supported by the TUSB321AIRWBR is 3 meters, as per the USB 2.0 specification. However, the actual cable length may vary depending on the specific application and cable quality.
The TUSB321AIRWBR can be powered from a 3.3V or 5V supply. For power management, use a voltage regulator, such as the TPS63050, to regulate the voltage and ensure a stable power supply. Additionally, consider using a power switch, like the TPS2115A, to control power to the device.
The TUSB321AIRWBR has a maximum junction temperature of 150°C. Ensure proper thermal design, including a heat sink if necessary, to prevent overheating. Follow the thermal design guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB321AIRWBR Overview

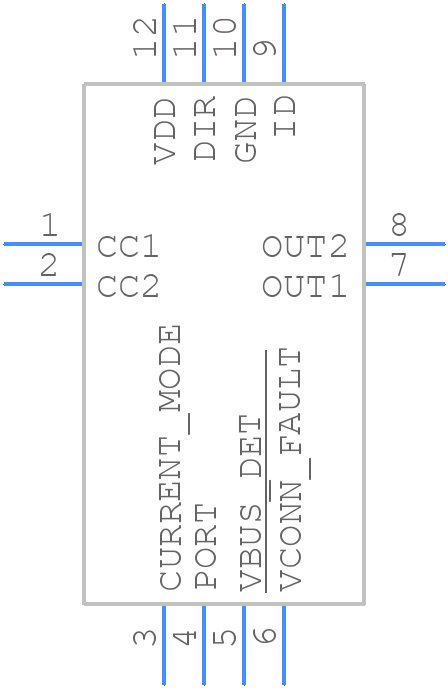

Use the download button to access the TUSB321AIRWBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB3,
or try a keyword search, such as Bus Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
