TUSB321RWBR - Texas Instruments

Description: USB Type-C Configuration Channel Logic and Port Control with VCONN

Download TUSB321RWBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

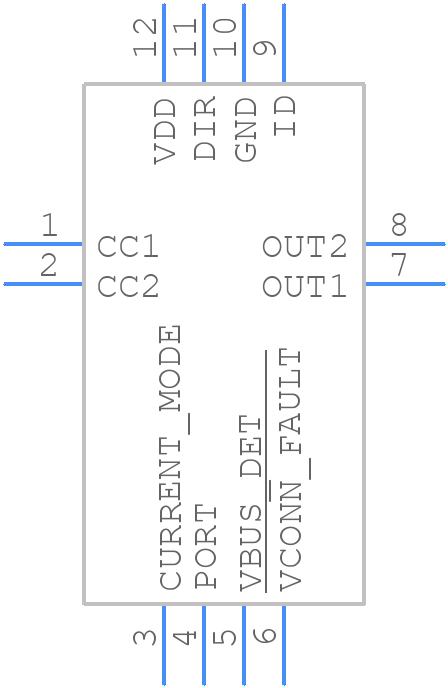

Symbol
TUSB321RWBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB321RWBR - Texas Instruments PCB footprint - Other - Other - RWB0012A_2019
click to zoom
3D Models
TUSB321RWBR - Texas Instruments - 3D model - Other - RWB0012A_2019
click to zoom

TUSB321RWBR Details

  • Manufacturer Part Number:

    TUSB321RWBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    USB

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.063SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.4 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB321RWBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'TUSB321RWBR PCB Layout Guidelines' application note (SLUA623) for optimal performance.
  • To ensure signal integrity, use a differential pair for the USB data lines (D+ and D-), keep the traces as short as possible, and use a common mode filter or a USB signal repeater if necessary. Also, follow the USB 2.0 specification for cable and connector requirements.
  • The TUSB321RWBR supports cable lengths up to 3 meters, but this can vary depending on the specific application and cable quality. It's recommended to follow the USB 2.0 specification for cable and connector requirements.
  • The TUSB321RWBR has a built-in power management feature that allows it to enter a low-power state when not in use. You can also use an external power switch to control power to the device. Refer to the datasheet for more information on power management.
  • The TUSB321RWBR has a maximum junction temperature of 150°C. Ensure good thermal design practices, such as providing adequate heat sinking and airflow, to prevent overheating. Refer to the datasheet for thermal characteristics and guidelines.
