TUSB3410IRHBR - Texas Instruments

Description: Full Speed USB to Serial Port Controller USB 2.0 3.3V T/R 32-Pin VQFN EP

Download TUSB3410IRHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

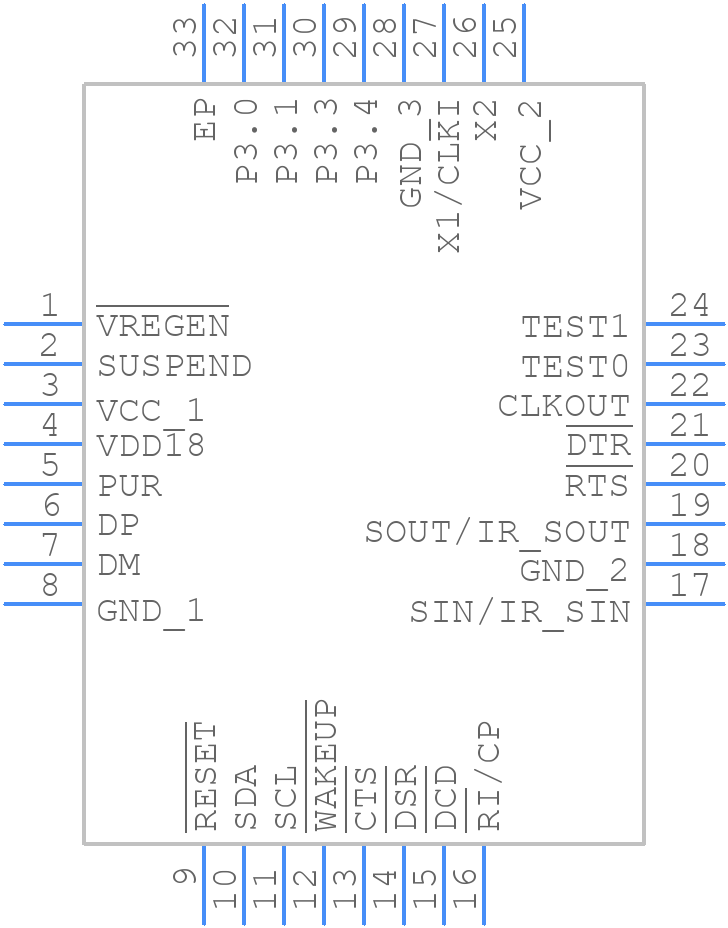

Symbol
TUSB3410IRHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB3410IRHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
TUSB3410IRHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

TUSB3410IRHBR Details

  • Manufacturer Part Number:

    TUSB3410IRHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C; UART

  • Clock Frequency-Max:

    12 MHz

  • Data Transfer Rate-Max:

    12 MBps

  • Drive Interface Standard:

    RS232; RS485

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB3410IRHBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TUSB3410IRHBR Evaluation Module User's Guide (SLUU444). It's essential to follow this guide to ensure signal integrity and minimize electromagnetic interference (EMI).
  • The TUSB3410IRHBR can be configured for different USB speeds using the SPEED pin. For example, tying the SPEED pin to VCC sets the device for high-speed operation, while tying it to GND sets it for full-speed operation. See the datasheet for more information on speed configuration.
  • The TUSB3410IRHBR supports cable lengths up to 3 meters for high-speed operation and up to 5 meters for full-speed operation. However, the actual cable length may vary depending on the specific application and cable quality.
  • The TUSB3410IRHBR has a built-in power management system that can be controlled using the PMODE pin. The device can be configured for bus-powered or self-powered operation, and it also has a suspend mode to reduce power consumption when not in use.
  • The TUSB3410IRHBR has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management in the system design. See the datasheet for more information on thermal characteristics.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB3410IRHBR Overview

Use the download button to access the TUSB3410IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB3, or try a keyword search, such as Bus Controllers
