Part Image

TUSB3410RHB - Texas Instruments

Description: UART, I2C & IrDA serial port to USB bridge

Download TUSB3410RHB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

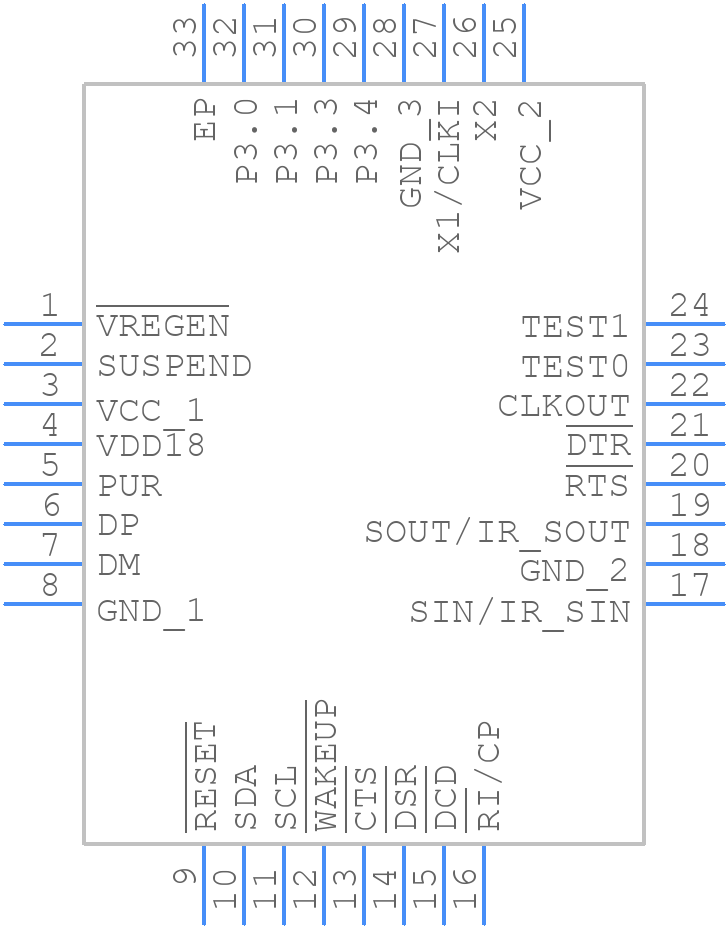

TUSB3410RHB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB3410RHB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
TUSB3410RHB - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

TUSB3410RHB Details

  • Manufacturer Part Number:

    TUSB3410RHB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C; UART

  • Clock Frequency-Max:

    12 MHz

  • Data Transfer Rate-Max:

    12 MBps

  • Drive Interface Standard:

    RS232; RS485

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB3410RHB Frequently Asked Questions (FAQs)

  • A good PCB layout for the TUSB3410RHB involves keeping the high-speed USB traces short and away from noise sources, using a solid ground plane, and placing the device close to the USB connector. TI provides a recommended layout in the datasheet and application notes.
  • The 1.5kΩ pull-up resistor on the D+ line is required for USB device mode. It can be connected externally or internally using the TUSB3410RHB's internal pull-up resistor. The internal pull-up can be enabled by setting the PUEN pin high.
  • The VBUS pin is used to detect the presence of a USB host and to enable the internal regulator. It should be connected to the USB bus voltage (VBUS) through a 1kΩ resistor and a 10μF capacitor to filter out noise.
  • To configure the TUSB3410RHB for USB host mode, the MODE pin should be set low, and the VBUS pin should be connected to a voltage source (e.g., 5V) through a 1kΩ resistor and a 10μF capacitor. Additionally, the device should be configured using the I2C interface.
  • The TUSB3410RHB supports USB 2.0 high-speed data transfer rates, which have a maximum cable length of 3 meters (10 feet). However, the actual cable length may vary depending on the specific application and cable quality.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB3410RHB Overview

Use the download button to access the TUSB3410RHB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB3, or try a keyword search, such as Bus Controllers
