TUSB3410VF - Texas Instruments

Description: TUSB3410VFG4, USB Controller 12Mbit/s USB 2.0, 3.3V, 32-Pin, LQFP

Download TUSB3410VF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

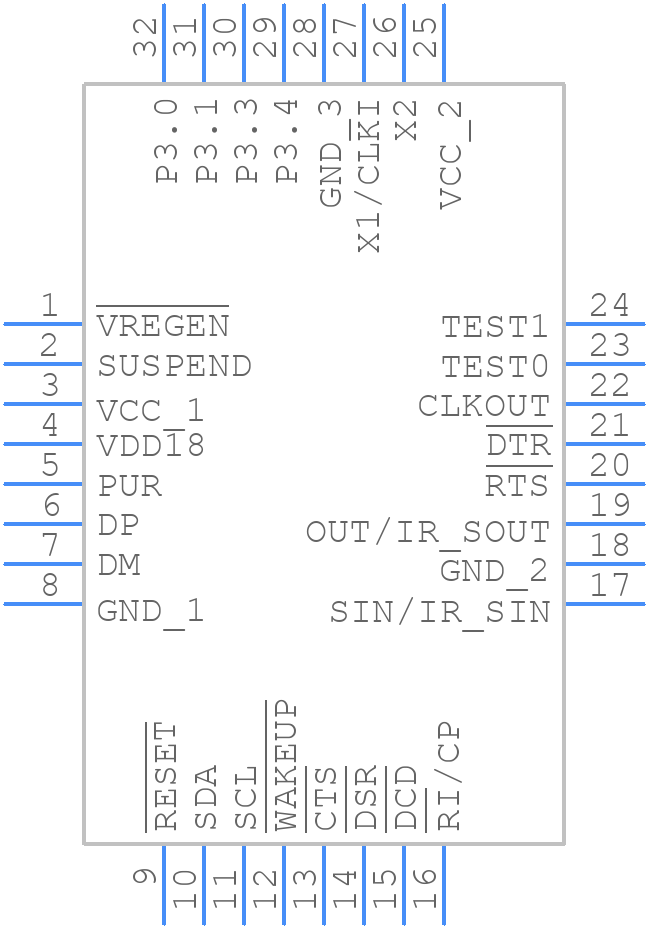

TUSB3410VF - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB3410VF - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - VF0032A
click to zoom
3D Models
TUSB3410VF - Texas Instruments - 3D model - Quad Flat Packages - VF0032A
click to zoom

TUSB3410VF Details

  • Manufacturer Part Number:

    TUSB3410VF

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C; UART

  • Clock Frequency-Max:

    12 MHz

  • Data Transfer Rate-Max:

    12 MBps

  • Drive Interface Standard:

    RS232; RS485

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB3410VF Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TUSB3410VF evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • The TUSB3410VF can be configured for USB 2.0 or USB 3.0 operation through the use of external resistors and capacitors. The datasheet provides a table that outlines the required component values for each configuration.
  • The TUSB3410VF supports cable lengths up to 3 meters for USB 2.0 and 2 meters for USB 3.0, assuming a good quality cable with minimal attenuation. However, the actual cable length supported may vary depending on the specific application and cable characteristics.
  • The TUSB3410VF has a built-in overcurrent protection feature that can be enabled through an external resistor. The datasheet provides a formula to calculate the required resistor value based on the desired overcurrent threshold.
  • Yes, the TUSB3410VF can be used in a USB OTG application. However, it requires additional external circuitry and software support to implement the OTG protocol.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB3410VF Overview

Use the download button to access the TUSB3410VF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB3, or try a keyword search, such as Bus Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
