TUSB4041IPAP - Texas Instruments

Description: 4-port high-speed 480-Mbps USB 2.0 hub

Download TUSB4041IPAP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TUSB4041IPAP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

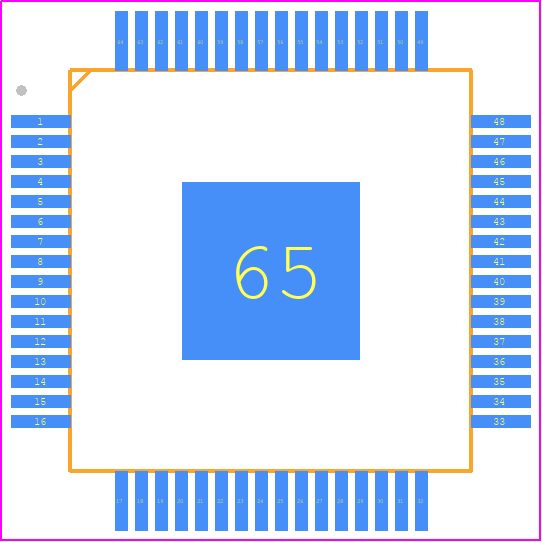

TUSB4041IPAP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - HTQFP
click to zoom
3D Models
TUSB4041IPAP - Texas Instruments - 3D model - Quad Flat Packages - HTQFP
click to zoom

TUSB4041IPAP Details

  • Manufacturer Part Number:

    TUSB4041IPAP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES AT 3.3 SUPPLY

  • Bus Compatibility:

    I2C, SMBUS, USB

  • Clock Frequency-Max:

    24 MHz

  • Data Transfer Rate-Max:

    0.0125 MBps

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    86 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    0.99 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB4041IPAP Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the TUSB4041IPAP. TI recommends a 4-layer PCB with a solid ground plane, and to keep the high-speed signals away from the power planes. Also, use a common mode filter and a shielded cable to minimize EMI.
  • To ensure compliance, follow the USB 3.2 Gen 2 specification guidelines, use a certified USB 3.2 Gen 2 cable, and perform thorough testing, including signal integrity and compliance testing, using tools like a protocol analyzer and a signal generator.
  • The TUSB4041IPAP requires a 3.3V power supply, and it's recommended to use a low-dropout regulator (LDO) with a high power supply rejection ratio (PSRR) to minimize noise and ensure stable operation.
  • The TUSB4041IPAP has a thermal pad that must be connected to a solid ground plane to dissipate heat. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary, and follow TI's thermal design guidelines.
  • The TUSB4041IPAP has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during manufacturing and assembly, and to use ESD protection devices on the USB lines if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB4041IPAP Overview

Use the download button to access the TUSB4041IPAP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB4, or try a keyword search, such as Bus Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
