TUSB4041IPAPQ1 - Texas Instruments

Description: Automotive Four-Port High-Speed 480Mbps USB 2.0 Hub

Download TUSB4041IPAPQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TUSB4041IPAPQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

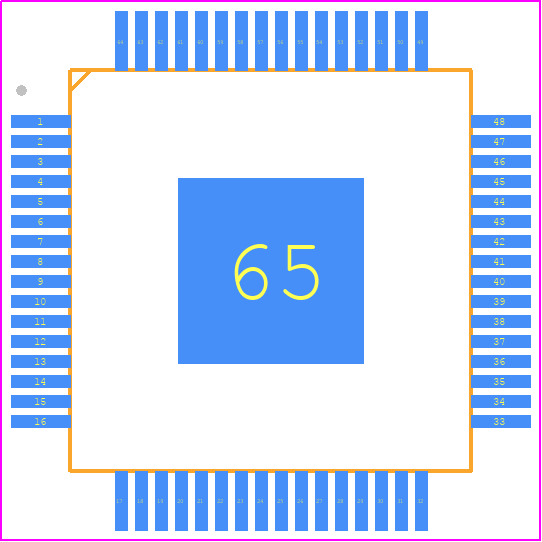

TUSB4041IPAPQ1 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - pap(s-pqfp-g64)-ren1
click to zoom
3D Models
TUSB4041IPAPQ1 - Texas Instruments - 3D model - Quad Flat Packages - pap(s-pqfp-g64)-ren1
click to zoom

TUSB4041IPAPQ1 Details

  • Manufacturer Part Number:

    TUSB4041IPAPQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES AT 3.3 SUPPLY

  • Bus Compatibility:

    I2C, SMBUS, USB

  • Clock Frequency-Max:

    24 MHz

  • Data Transfer Rate-Max:

    0.0125 MBps

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    86 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    0.99 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB4041IPAPQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the TUSB4041IPAPQ1. Ensure a solid ground plane, keep the USB traces short and away from noise sources, and use a common mode filter to reduce EMI. TI provides a recommended layout in the datasheet and application notes.
  • The TUSB4041IPAPQ1 requires a 3.3V power supply. Ensure a stable power supply with a low dropout regulator (LDO) or a switching regulator. Power sequencing is critical; power up the 3.3V supply before the USB signals. TI recommends a specific power-up sequence in the datasheet.
  • The TUSB4041IPAPQ1 has a thermal pad that must be connected to a solid ground plane for heat dissipation. Ensure good thermal conductivity between the device and the PCB. Avoid blocking airflow around the device, and consider using a heat sink if operating in high-temperature environments.
  • The TUSB4041IPAPQ1 has internal ESD protection, but additional external protection is recommended. Use TVS diodes or ESD protection arrays on the USB lines to protect against electrostatic discharge. TI recommends specific ESD protection components in the datasheet.
  • The TUSB4041IPAPQ1 requires proper signal termination and impedance matching to ensure reliable USB operation. Use 45Ω resistors for signal termination, and ensure the PCB trace impedance is matched to the cable impedance (90Ω differential). TI provides specific guidelines in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB4041IPAPQ1 Overview

Use the download button to access the TUSB4041IPAPQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB4, or try a keyword search, such as Bus Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
