TUSB8041IPAPQ1 - Texas Instruments

Description: Automotive Four-Port SuperSpeed 5.0Gbps USB 3.0 Hub

Download TUSB8041IPAPQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TUSB8041IPAPQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

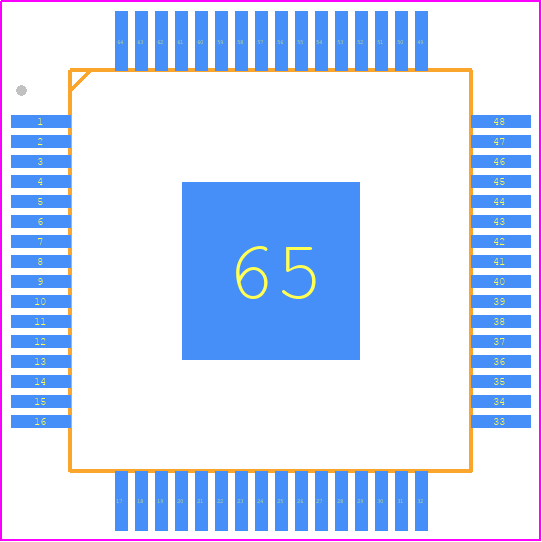

TUSB8041IPAPQ1 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PowerPAD - 1.2 mm pap0064m
click to zoom
3D Models
TUSB8041IPAPQ1 - Texas Instruments - 3D model - Quad Flat Packages - PowerPAD - 1.2 mm pap0064m
click to zoom

TUSB8041IPAPQ1 Details

  • Manufacturer Part Number:

    TUSB8041IPAPQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFP-64

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C; SMBUS

  • Clock Frequency-Max:

    24 MHz

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    0.99 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB8041IPAPQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter and decoupling capacitors to reduce EMI.
  • Use a high-quality clock source, keep the clock signal traces short and shielded, and use a clock buffer to reduce jitter. Also, ensure that the signal traces are impedance-matched and terminated properly.
  • The maximum cable length supported is 3 meters, but this can vary depending on the specific application and cable quality. It's recommended to use high-quality, shielded cables to minimize signal degradation.
  • To configure the TUSB8041IPAPQ1 for USB 3.2 Gen 2 operation, set the MODE pin to '1' and the SPEED pin to '0'. Also, ensure that the device is powered by a 3.3V supply and that the VBUS pin is connected to a 5V supply.
  • The TUSB8041IPAPQ1 has a maximum junction temperature of 150°C. Ensure good airflow around the device, and use thermal vias and a heat sink if necessary. Also, follow the recommended PCB layout guidelines to minimize thermal resistance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB8041IPAPQ1 Overview

Use the download button to access the TUSB8041IPAPQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB8, or try a keyword search, such as Bus Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
