TUSS4440TRTJR - Texas Instruments

Description: Sensor Interface Transformer drive ultrasonic sensor IC with logarithmic amplifier 20-QFN -25 to 105

Download TUSS4440TRTJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

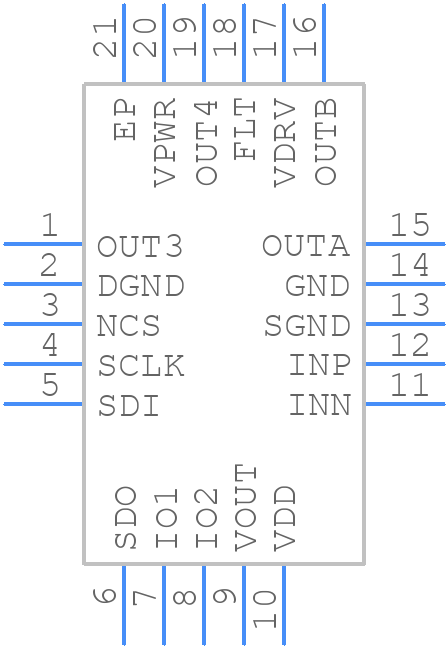

TUSS4440TRTJR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSS4440TRTJR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTJ0020D
click to zoom
3D Models
TUSS4440TRTJR - Texas Instruments - 3D model - Quad Flat No-Lead - RTJ0020D
click to zoom

TUSS4440TRTJR Details

  • Manufacturer Part Number:

    TUSS4440TRTJR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-12-21

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.34 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TUSS4440TRTJR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a heat sink if necessary, and consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
  • Texas Instruments recommends soldering the TUSS4440TRTJR using a reflow soldering process with a peak temperature of 260°C (500°F) and a dwell time of 20-30 seconds. Hand soldering is not recommended due to the device's small size and high pin count.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors for correct values and connections. Also, verify that the device is properly decoupled and that the output capacitor is of sufficient value and type.
  • Texas Instruments recommends using a low-ESR ceramic capacitor with a value of 10-22 μF and a voltage rating of at least 2x the input voltage. The capacitor should be placed as close as possible to the device's input pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSS4440TRTJR Overview

Use the download button to access the TUSS4440TRTJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSS4, or try a keyword search, such as Analog Computational Functions

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
