TVP5146M2PFP - Texas Instruments

Description: 4×10-Bit Digital Video Decoder

Download TVP5146M2PFP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TVP5146M2PFP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

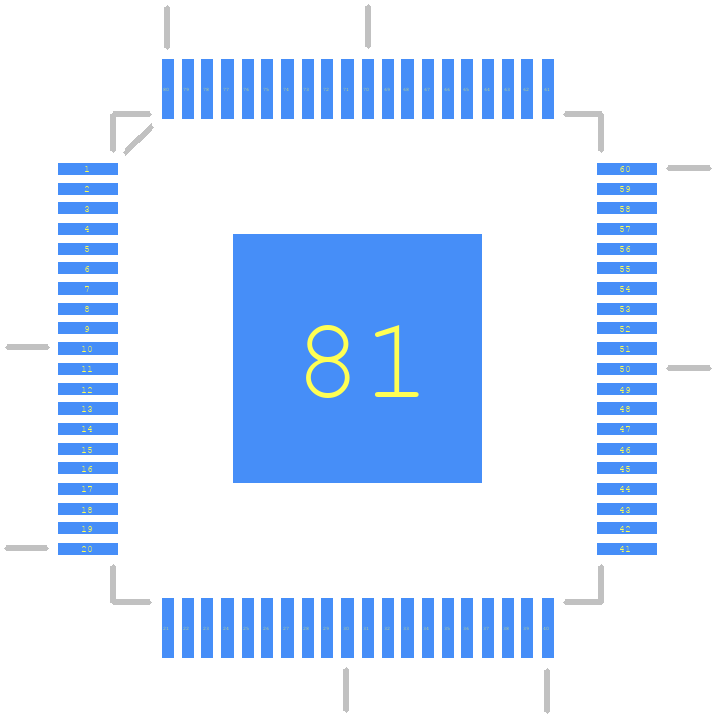

TVP5146M2PFP - Texas Instruments PCB footprint - Other - Other - QFP50P1400X1400X120-81N
click to zoom
3D Models
TVP5146M2PFP - Texas Instruments - 3D model - Other - QFP50P1400X1400X120-81N
click to zoom

TVP5146M2PFP Details

  • Manufacturer Part Number:

    TVP5146M2PFP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    80

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO REQUIRES 3V TO 3.6V SUPPLY

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • Input Type:

    RGB; R-Y; B-Y; Y

  • JESD-30 Code:

    S-PQFP-G80

  • JESD-609 Code:

    e4

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    80

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP80,.55SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Video Standard:

    PAL; NTSC; SECAM

  • Width:

    12 mm

TVP5146M2PFP Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog power pins (AVDD and DVDD) first, followed by the digital power pins (DVDD and PVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The TVP5146M2PFP can be configured for a specific video format using the I2C interface. The device has a set of registers that control the video format, including the video standard, resolution, and pixel clock frequency. Consult the datasheet for the specific register settings for each video format.
  • The TVP5146M2PFP supports clock frequencies up to 148.5 MHz, which is sufficient for most high-definition video formats.
  • The TVP5146M2PFP has a thermal pad on the bottom of the package that must be connected to a thermal ground plane on the PCB to ensure proper heat dissipation. Additionally, the device has a thermal monitoring feature that can be used to monitor the device temperature and take corrective action if necessary.
  • The recommended layout and routing for the TVP5146M2PFP involves keeping the analog and digital signals separate, using differential pairs for the video signals, and minimizing the length of the clock signal traces. Consult the datasheet for specific layout and routing guidelines.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TVP5146M2PFP Overview

Use the download button to access the TVP5146M2PFP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TVP51, or try a keyword search, such as Color Signal Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
