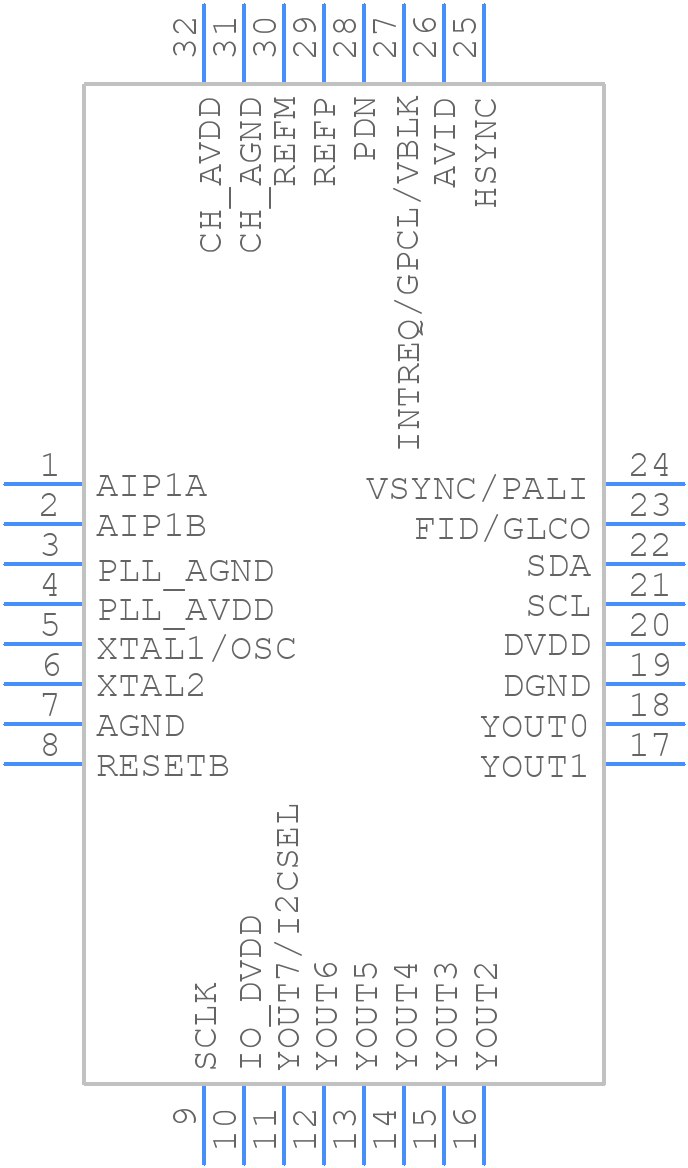

TVP5150AM1IPBSRQ1 - Texas Instruments

TVP5150AM1IPBSRQ1 Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the TVP5150?
  The recommended power-up sequence is to apply power to the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
• How do I configure the TVP5150 for a specific video standard?
  The TVP5150 can be configured for different video standards (e.g. NTSC, PAL, SECAM) using the I2C interface. The specific register settings for each standard can be found in the datasheet or in the device's programming guide.
• What is the maximum clock frequency supported by the TVP5150?
  The TVP5150 supports clock frequencies up to 27 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
• How do I handle the TVP5150's output data format?
  The TVP5150 outputs video data in a 10-bit YCbCr 4:2:2 format. The output data can be formatted as either ITU-R BT.656 or ITU-R BT.1120. The specific output format can be selected using the I2C interface.
• What is the TVP5150's latency, and how does it affect my system design?
  The TVP5150's latency is typically around 2-3 lines of video data. This latency should be taken into account when designing the system's video processing pipeline to ensure proper synchronization and timing.
