TVP5150AM1IZQCR - Texas Instruments

Description: Video Decoder 1ADC 9-Bit 48-Pin BGA MICROSTAR JUNIOR T/R

Download TVP5150AM1IZQCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

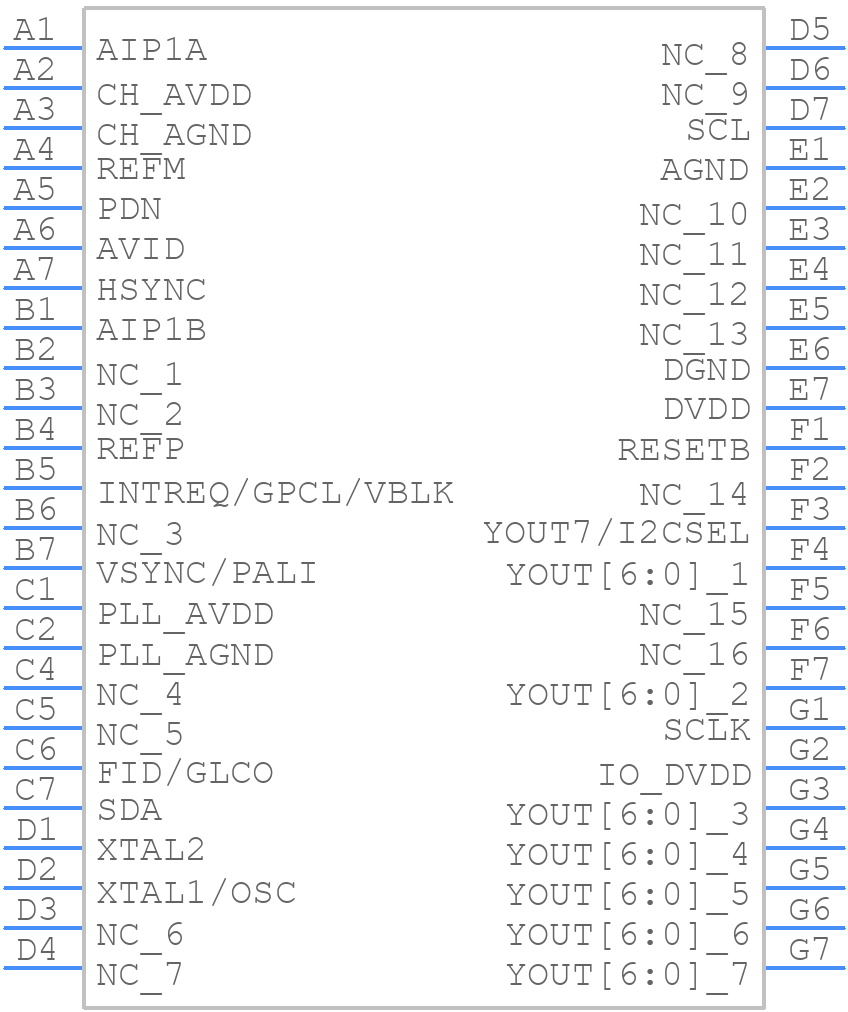

TVP5150AM1IZQCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TVP5150AM1IZQCR - Texas Instruments PCB footprint - BGA - BGA - ZQC(S-PBGA-N48)
click to zoom
3D Models
TVP5150AM1IZQCR - Texas Instruments - 3D model - BGA - ZQC(S-PBGA-N48)
click to zoom

TVP5150AM1IZQCR Details

  • Manufacturer Part Number:

    TVP5150AM1IZQCR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    BGA-48

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • Input Type:

    R-Y; B-Y; Y

  • JESD-30 Code:

    S-PBGA-B48

  • JESD-609 Code:

    e1

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA48,7X7,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    32.9 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Video Standard:

    PAL;NTSC;SECAM

  • Width:

    4 mm

TVP5150AM1IZQCR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog power pins (VAA and VDD) first, followed by the digital power pins (VDDIO and VDDC). This ensures that the analog circuits are powered up before the digital circuits.
  • The TVP5150 can be configured for different video input formats using the I2C interface. The device has a set of registers that control the video input format, such as the input standard, clock frequency, and sync polarity. Refer to the datasheet for the specific register settings for each format.
  • The TVP5150 supports clock frequencies up to 74.25 MHz, which is sufficient for most standard definition and high definition video formats.
  • The TVP5150 has a built-in thermal shutdown feature that shuts down the device when it exceeds a certain temperature threshold. To handle this feature, ensure that the device is properly heat-sinked and that the thermal shutdown pin (TSD) is connected to a suitable pull-up resistor and capacitor to filter out noise.
  • The recommended layout and routing for the TVP5150 involves keeping the analog and digital signals separate, using differential pairs for clock and data signals, and minimizing the length of the traces to reduce noise and signal degradation. Refer to the datasheet for specific layout and routing guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TVP5150AM1IZQCR Overview

Use the download button to access the TVP5150AM1IZQCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TVP51, or try a keyword search, such as Color Signal Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
