TVP5150AM1ZQC footprint, schematic symbol and 3D model by Texas Instruments

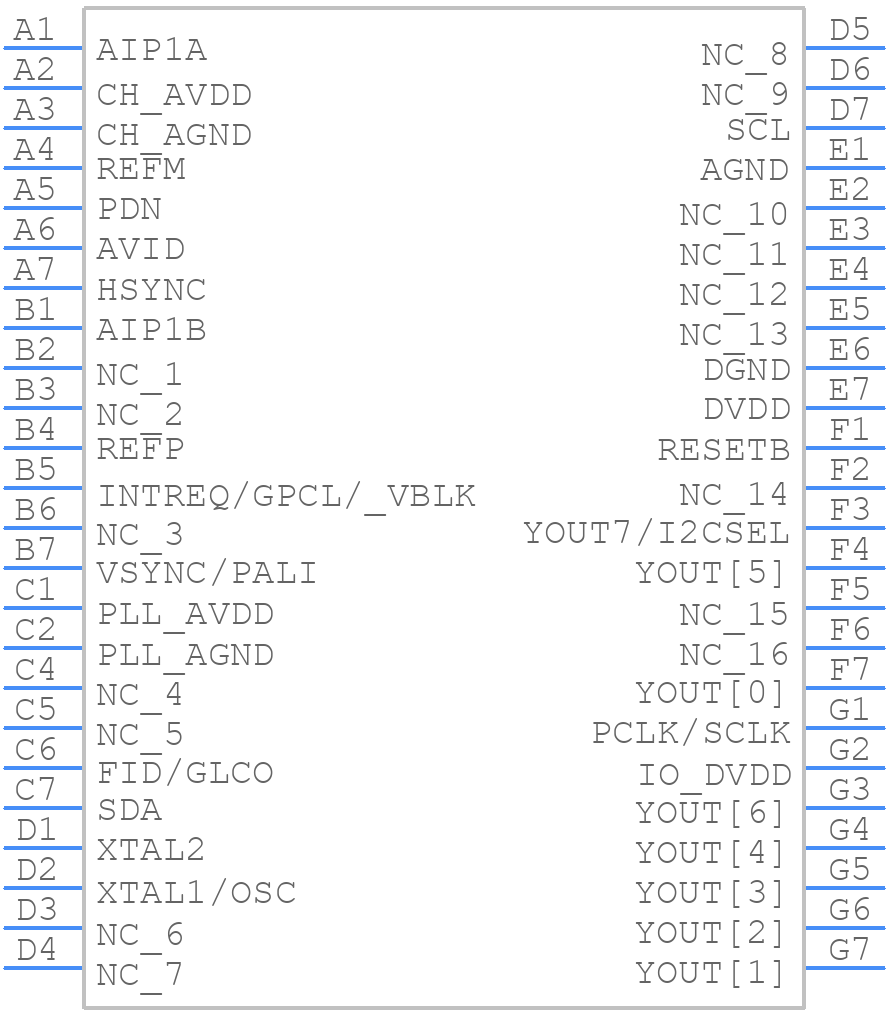

Symbol

click to zoom

PCB Footprints

TVP5150AM1ZQC - Texas Instruments PCB footprint - BGA - BGA - ZQC(S-PBGA-N48)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TVP5150AM1ZQC
Part Number TVP5150AM1ZQC
Manufacturer Texas Instruments
Pin Count 48
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - ZQC(S-PBGA-N48)
Released Date Dec 14, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TVP5150AM1ZQC Details

Manufacturer Part Number:
TVP5150AM1ZQC
Brand Name:
Texas Instruments
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
BGA
Package Description:
BGA-48
Pin Count:
48
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Texas Instruments
YTEOL:
0
Consumer IC Type:
COLOR SIGNAL DECODER
Input Type:
R-Y; B-Y; Y
JESD-30 Code:
S-PBGA-B48
JESD-609 Code:
e1
Length:
4 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
48
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Equivalence Code:
BGA48,7X7,20
Package Shape:
SQUARE
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Current-Max:
32.9 mA
Supply Voltage-Max (Vsup):
1.95 V
Supply Voltage-Min (Vsup):
1.65 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.5 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Video Standard:
PAL;NTSC;SECAM
Width:
4 mm

TVP5150AM1ZQC Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply power to the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
The TVP5150 can be configured for different video standards (e.g., NTSC, PAL, SECAM) by setting the appropriate registers and pins. Refer to the datasheet and application notes for specific configuration details.
The TVP5150 supports clock frequencies up to 27 MHz. However, the maximum clock frequency may vary depending on the specific application and video standard used.
The TVP5150 provides both analog and digital outputs. The analog outputs (CVBS, Y, C) should be AC-coupled and terminated with a 75-ohm load, while the digital outputs (Y, Cb, Cr) should be connected to a digital decoder or processor.
The power consumption of the TVP5150 depends on the specific application and operating conditions. However, the typical power consumption is around 250 mW (analog supply) and 150 mW (digital supply) when operating at 27 MHz.
