TVP5150APBS - Texas Instruments

Description: TEXAS INSTRUMENTS - TVP5150APBS - VIDEO DECODER, SMD, TQFP32, 5150

Download TVP5150APBS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

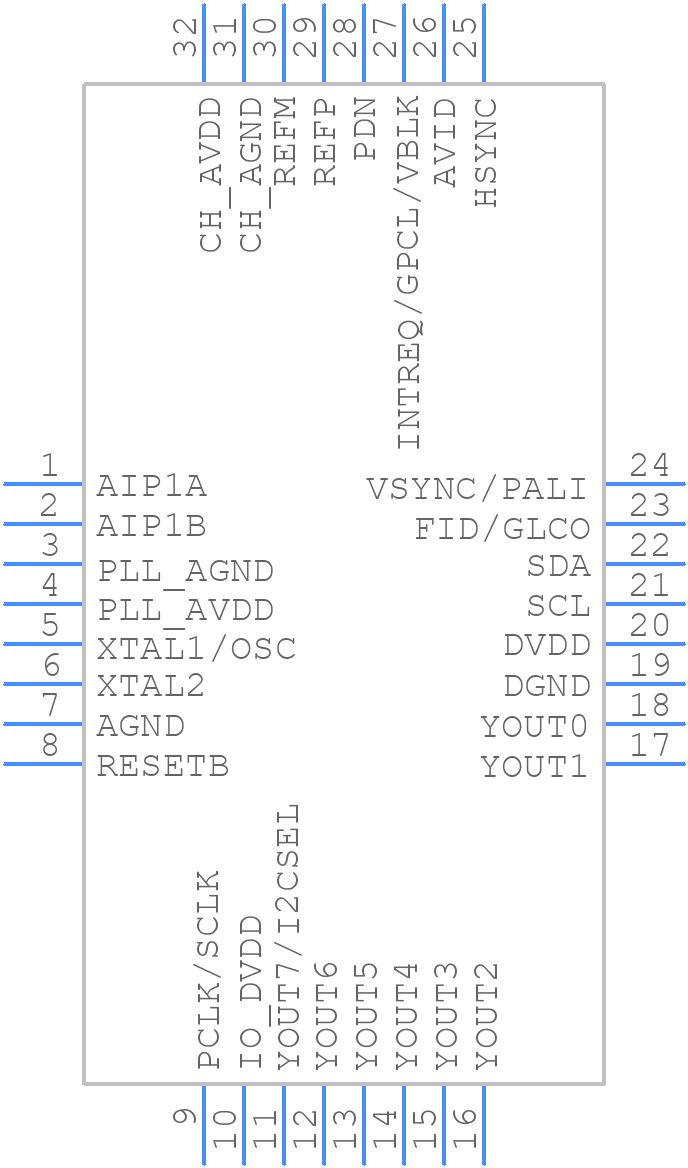

TVP5150APBS - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TVP5150APBS - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PBS (S-PQFP-G32)
click to zoom
3D Models
TVP5150APBS - Texas Instruments - 3D model - Quad Flat Packages - PBS (S-PQFP-G32)
click to zoom

TVP5150APBS Details

  • Manufacturer Part Number:

    TVP5150APBS

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • Input Type:

    R-Y; B-Y; Y

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP32,.28SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Video Standard:

    PAL;NTSC;SECAM

  • Width:

    5 mm

TVP5150APBS Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • The TVP5150APBS can be configured for different video standards (e.g. NTSC, PAL, SECAM) by setting the appropriate values for the VID_STD[2:0] pins. Refer to the datasheet for the specific pin settings for each standard.
  • The TVP5150APBS supports clock frequencies up to 27 MHz. However, the maximum clock frequency may vary depending on the specific application and video standard being used.
  • The TVP5150APBS has internal termination resistors for the analog video input signals. However, it is recommended to use external termination resistors to ensure proper signal termination and to reduce noise.
  • The PLL_BYPASS pin allows the user to bypass the internal phase-locked loop (PLL) and use an external clock source instead. This can be useful in applications where a stable external clock source is available.
