TVP5150APBSR - Texas Instruments

Description: Video ICs Ultralo Pwr NTSC/PAL SECAM Vid Decoder

Download TVP5150APBSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

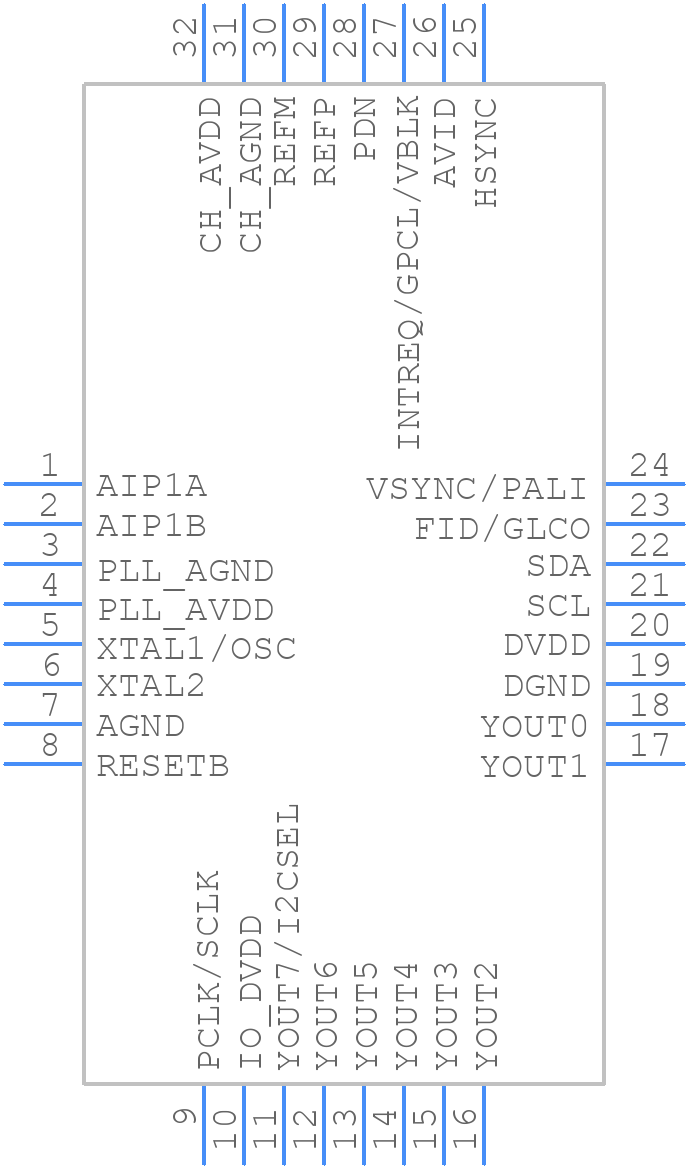

TVP5150APBSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TVP5150APBSR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PBS (S-PQFP-G32)
click to zoom
3D Models
TVP5150APBSR - Texas Instruments - 3D model - Quad Flat Packages - PBS (S-PQFP-G32)
click to zoom

TVP5150APBSR Details

  • Manufacturer Part Number:

    TVP5150APBSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-32

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • Input Type:

    R-Y; B-Y; Y

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP32,.28SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Video Standard:

    PAL; NTSC; SECAM

  • Width:

    5 mm

TVP5150APBSR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog power pins (VAA and VDD) first, followed by the digital power pins (VDDIO and VDDC). This ensures that the analog circuits are powered up before the digital circuits.
  • The TVP5150 can be configured for different video input formats using the I2C interface. The device has a set of registers that control the video input format, such as the input standard, clock frequency, and sync polarity. Refer to the datasheet for the specific register settings for each format.
  • The TVP5150 can support clock frequencies up to 74.25 MHz, which is sufficient for most standard definition and high definition video formats.
  • The TVP5150 outputs video data in a 10-bit YCbCr format. The data can be processed and formatted for display using an external video processing unit or a microcontroller with video processing capabilities.
  • The power consumption of the TVP5150 depends on the operating mode and the clock frequency. In active mode, the typical power consumption is around 250 mW, while in standby mode, it is around 10 mW.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TVP5150APBSR Overview

Use the download button to access the TVP5150APBSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TVP51, or try a keyword search, such as Color Signal Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
